Fully Automatic Vaseline Plaster Drop Point Tester 2 Holes USB Display

Fully Automatic Vaseline Plaster Drop Point Tester 2 Holes USB Display

Brand Name: Shengtai Instrument
Model Number: ST212B
MOQ: 1
Price: $8550
Payment Terms: T/T
Supply Ability: 5 cartons per week
Detail Information
Place of Origin:
China
Applicable Standards:
Chinese Vaseline Ointment 2020
Temperature Measurement Range:
Room Temperature ~ 400 ℃ Resolution: 0.1℃
Ambient Temperature:
10℃ ~ 35℃
Temperature Control Precision Of Metal Bath:
±1℃
Environmental Relative Humidity:
30 ~ 80%RH
Power Supply:
Less Than 2KW
Highlight:

fully automatic vaseline plaster tester

,

drop point tester with USB display

,

2 holes vaseline plaster tester

Product Description
2 Holes USB Display Fully Automatic Vaseline Plaster Ointment Drop Point Tester for Accurate Drop Point Measurement
Product Specifications
Attribute Value
Applicable standards Chinese Vaseline ointment 2020
Temperature measurement range Room temperature ~ 400℃ (Resolution: 0.1℃)
Ambient temperature 10℃ ~ 35℃
Temperature control precision of metal bath ±1℃
Environmental relative humidity 30 ~ 80%RH
Power supply Less than 2KW
Product Description

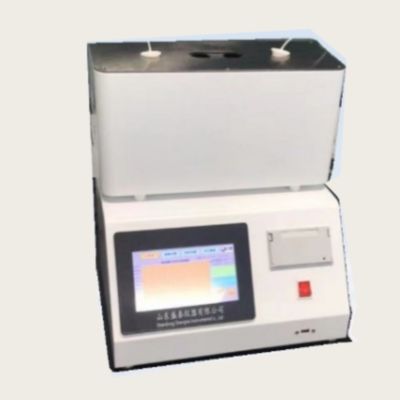

The ST212B fully automatic Vaseline Plaster ointment drop point tester complies with both Chinese Pharmacopoeia 2020 and England Pharmacopoeia standards. Utilizing microprocessor technology, it integrates mechanical, photoelectronic, and micro-detection technologies to provide fully automated drop point measurement with features including automatic temperature control, data recording, and printing output.
Key Features
  • 1.7" touch screen display for intuitive operation
  • Imported temperature sensor ensures precise and stable temperature measurement
  • Metal bath heating system - quiet, pollution-free, with rapid heating
  • High-temperature resistant optical fiber for accurate droplet detection
  • Built-in clock eliminates need for manual date entry
  • Dual test holes for efficient testing
  • Comprehensive data management with 199-group storage capacity
  • USB output capability for CSV/Excel format data transfer
  • TCP network transmission for remote software upgrades
  • LIMS system compatibility for laboratory integration
  • Expandable memory up to 16GB
  • Multi-level account management with password protection
Technical Parameters
Parameter Specification
Test sample Vaseline ointment
Test item Drop point test
Power supply AC220±10% V 50HZ±1HZ
Printer Small thermal printer
Detection mode Imported high-precision optical fiber detection
Data output Real-time temperature-time curve display
Packing List
S/N Name Quantity Unit Remarks
1 Host 1 set
2 Drop sample cup 2 piece
3 Drop test tube 2 piece
4 Power cord 1 piece
5 Certificate warranty card 1 copy
6 Instructions 1 copy
7 Printing paper 1 volume
