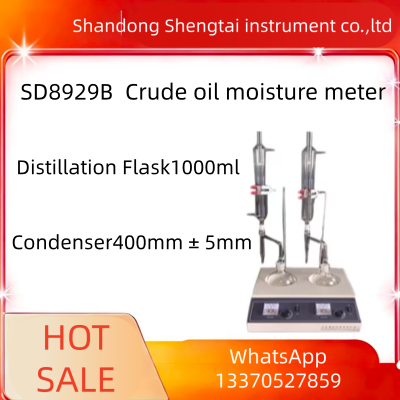

SD8929B Crude Oil Moisture Meter ASTM D4006 1000W Precise Distillation Water Content Tester Glass Set
Standard: ASTM D4006 / GB/T 8929
The SD8929B crude oil moisture meter is developed and fabricated in full compliance with the requirements set out in GB/T 8929-2006, the national standard of the People's Republic of China governing *Determination of Water Content in Crude Oil*. It is applicable for testing crude oil water content through the distillation method outlined in GB/T 8929.
This device also qualifies as an ASTM D4006-compliant crude oil moisture content tester.
#### Core Technical Features
- The instrument’s complete design aligns fully with the specifications of the GB/T 8929 standard.
- The test vessel holder boasts a well-thought-out structure, enabling easy assembly and disassembly of the condensation tube.
- The distillation flask, water receiver and condenser are all manufactured to match the requirements of GB/T 8929-2006.
- The unit is supplied with pointed accessory tools, scrapers and sprayers, which fully meet the stipulations of GB/T 8929-2006.
Main technical parameters and indicators
| Heating power of electric furnace | 1000W |
| Distillation flask | 1000ml |
| Water receiver | 5ml, minimum scale of 0.05ml |
| Condenser | 400mm ± 5mm |
| Temp control method | electronic solid-state regulator |
| whole power | not exceeding 1100W |
| Working power supply | AC220V ± 10% 50Hz |
| Environmental temp | ≤ 35℃ |
| Relative humidity | ≤ 85% |
| Instrument size | 430 * 350 * 1100mm (including vessels) |
| Weight | 10kg |
Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packing List
| No. | Name | Quantity | Unit | Note |
| 1 | Moisture meter host | 1 | Set | |
| 2 | Condenser tube | 2 | Piece | |
| 3 | Receptor | 2 | Piece | |
| 4 | Round-bottom flask | 2 | Piece | |
| 5 | Column | 2 | Piece | |
| 6 | Condenser clamp | 2 | Piece | |
| 7 | User Manual | 1 | Copy | |
| 8 | Certificate of Conformity Warranty Card | 1 | Copy |
Unlike most domestic manufacturers that only adhere to domestic standards, Shengtai Instruments optimizes its product design and supporting services for the global market:
Comprehensive coverage of multiple standards: The core products simultaneously meet the standards of various countries such as China's GB and the United States' ASTM, and the test results are recognized in the global oil trade scenarios.
