| Brand Name: | Shengtai Instrument |
| Model Number: | SH8017 |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 10000sets/year |

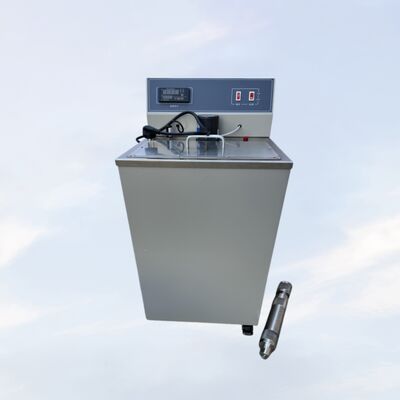

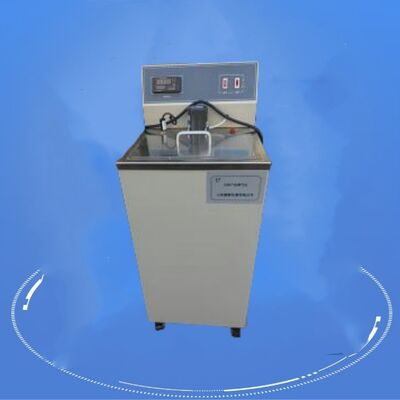

The SH8017 Vapor Pressure Tester for Petroleum Products is designed and manufactured in accordance with GB/T 8017 Determination of Vapor Pressure of Petroleum Products (Reid Method) of the People’s Republic of China. It is intended for the measurement of vapor pressure of gasoline, volatile crude oils, and other volatile petroleum products.
It also conforms to ASTM D323 Standard Test Method for Vapor Pressure of Petroleum Products (Reid Method).
This instrument is also referred to as:
Vapor Pressure Tester for Petroleum Products (Reid Method)
Reid Vapor Pressure Tester
Manual Reid Method Vapor Pressure Tester for Petroleum Products
Petroleum Products Saturated Vapor Pressure Tester (Reid Method)
II. Main technical indexes and parameters
1, working power supply: AC220V±10%, 50Hz;
2, water bath heating power: 1600W;
3, the use of water bath temperature range: room temperature ~90℃;
4, water bath temperature control accuracy: + 0.1℃;
5, pressure gauge accuracy: + 0.4%;
6, ambient temperature: -10℃~35℃.
7, relative humidity: ≤85%.
8. Power consumption of the whole machine: no more than 1700W
| Description | Parameters |
| Input power | AC 220V ± 5% 50Hz |
| The use of water bath temperature range |
room temperature ~100℃;
|
| Temperature control accuracy | ± 0.1 ºC |
| Heating power | 1.6KW |
| Pressure gauge | Round Hand gauge 0 ~ 200KPa |
| pressure gauge accuracy | + 0.4%; |
| Ambient temperature | -10℃~35℃. |
| Relative humidity | <85% RH |
| Power consumption of the whole machine: no more than 1700W | |
| Package size: 48 * 45 * 75cm weight 50kg | |
Packing list
| S/N | Name | Unit | Quantity | Remarks |
| 1 | Vapor pressure meter | set | 1 | |
| 2 | Steam bomb | set | 2 | |
| 3 | Pressure gauge | piece | 2 | |
| 4 | Mercury thermometer | piece | 1 | |
| 5 | Instruction | copy | 1 | |
| 6 | Packing list | copy | 1 | |
| 7 | Certificate warranty card | copy | 1 |
