| Brand Name: | Shengtai Instrument |
| Model Number: | SH113Y |
| MOQ: | 1 |
| Payment Terms: | T/T, T/T |
| Supply Ability: | 100000sets/year |

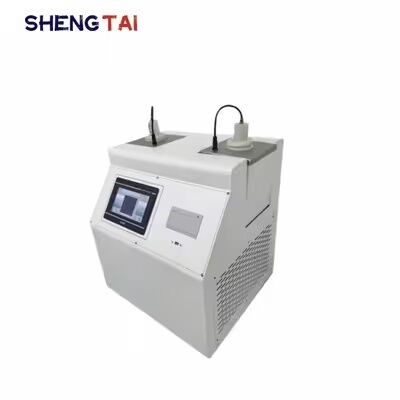

SH113Y Automatic Crude Oil Solidification Point Tester Is Based On SY/T0541 Temperature Range - 40~70 ℃
SH113Y automatic crude oil solidification point tester is designed and manufactured based on SY/T0541 crude oil freezing point measurement method. It adopts modern advanced technology and integrates mechanical, optical, electronic and computer technologies. It can automatically test the freezing point of petroleum products. This instrument uses photoelectric detection technology, automatic tilt method of glass tube, and imported compressor refrigeration system to ensure that the required refrigeration depth is reached.
Technical performance parameters:
| Name | automatic crude oil solidification point tester |
| Standard | SY/T0541 |
| Manufacture | Shandong Sheng tai Instrument Co., Ltd |
| Temperature range | - 40~70 ℃ |
| Temperature accuracy | 0.1 ℃ |
| Number of test samples | 2 |
| Working power supply | AC220V ± 10%; 50Hz |
|
Instrument size:650 * 480 * 620mm weight: 75kg
|
|
| Package size: 690 * 520 * 660 Package weight: 80kg | |
| Refrigeration mode |
compressor refrigeration
|
| Detection mode |
photoelectric sensor detection
|
| Tilting mode |
glass tube automatically tilts
|
| Result output | at the same time, it can be equipped with U disk output function and output to PC for long-term storage |
| Remote upgrade | With TCP network transmission function, software can be remotely upgraded later (optional |
| Data extension |
laser printer interface, which can link HP1108 laser printer (optional)
|
| Data storage | USB disk data export function |
| Data sharing |
access to the group company's limis system (optional)
|
| Printer | equipped with micro printer |
| Power consumption of the whole machine |
no more than 2000W.
|
● Large color LCD screen display, full Chinese human-computer dialogue interface, no logo keyboard,
● Simulate and trace the function curve of temperature and test time.
Automatic solidification point tester packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | main engine | 1 | Set | |
| 2 | Solidification glass tube | 2 | Piece | |
| 3 | Solidification point sensor | 2 | Piece | |
| 4 | power line | 1 | slip | |
| 4 | fuse | 1 | Piece | |
| 5 | operating instruction | 1 | Piece | |
| 6 | packing list | 1 | Piece | |
| 7 |
Certificate warranty card |
1 | Piece |
