PRODUCT DESCRIPTION

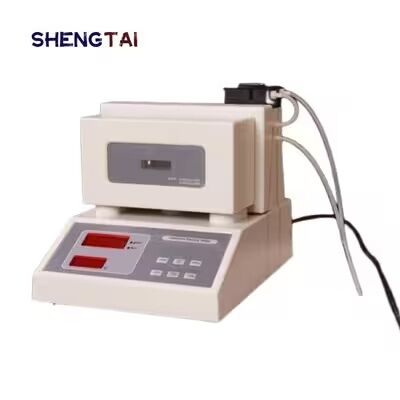

Fully Automatic Thermostatic Petroleum Density Meter U Shaped Data Storage 80 Groups

Working Principle of U-Tube Oscillation Densitometer for Liquid Density Measurement

Performance Features

1. Thermostatic Control: Liquid density is highly temperature-dependent, so it is necessary to convert the density measured at real-time temperature to the standard density at 20°C. This instrument adopts thermostatic bath control, enclosing the sensor, its components and the sample liquid in a thermostatic chamber. A temperature sensor monitors the temperature of the oscillation tube and sample liquid. The single-chip microcomputer controls electronic components to cool or heat the chamber, maintaining the temperature within 20°C ± 0.1°C. This eliminates the hassle and errors caused by manual temperature conversion, and ensures the instrument's measurement accuracy, stability and repeatability (the constant temperature can be customized according to user requirements).
2.
3. Direct Display of Density at 20°C with Temperature Readout: The single-chip microcomputer detects the sensor's oscillation frequency, applies a mathematical model of the relationship between sensor frequency and liquid density to calculate the density value, and performs floating-point operations to avoid errors caused by insufficient calculation digits. The calculated density value is displayed as a 5-digit number, with a dedicated temperature display window.
4.
5. Automatic Sampling: A single-chip microcomputer controls a stepper motor to drive a peristaltic pump for sample aspiration, enhancing the product's automation level.
6.
7. Acid and Alkali Resistant Tubing: All tubing in direct contact with the liquid is made of imported acid and alkali resistant materials, enabling the instrument to measure acidic and alkaline solutions.
8.
9. Data Storage and Transmission: Built-in memory can store 80 sets of test data, which can be retrieved and deleted as needed. The instrument can be connected to a computer via RS232 interface (customizable per user requirements).

Calibration Function

Main Technical Parameters of SH102D1 High-Precision Automatic Densitometer (Accuracy of 0.05%)

• Density measurement range: 0.0001~1.999g/cm³
• Density measurement accuracy: ±0.0005g/cm³
• Density resolution: 0.0005g/cm³
• Thermostatic control: 20°C ± 0.1°C (any temperature between 15°C and 35°C can be customized)
• Sample volume: 2ml per test
• Data storage: 80 sets
• Ambient temperature requirement: 5°C~35°C
• Power supply: 220V ± 22V, 50Hz ± 1Hz, 50VA
• Dimensions: 206×205×200mm
• Instrument weight: 3.2kg

Main Technical Parameters of SH102D2 Standard-Precision Automatic Densitometer (Accuracy of 0.1%)

• Density measurement range: 0.001~1.999g/cm³
• Density measurement accuracy: ±0.001g/cm³
• Density resolution: 0.001g/cm³
• Thermostatic control: 20°C ± 0.1°C (any temperature between 15°C and 35°C can be customized)
• Sample volume: 2ml per test
• Data storage: 80 sets
• Ambient temperature requirement: 5°C~35°C
• Power supply: 220V ± 22V, 50Hz ± 1Hz, 50VA
• Dimensions: 206mm×205mm×200mm
• Instrument weight: 3.2kg
• Package dimensions: 236×235×240mm
• Package weight: 3.5kg
•
