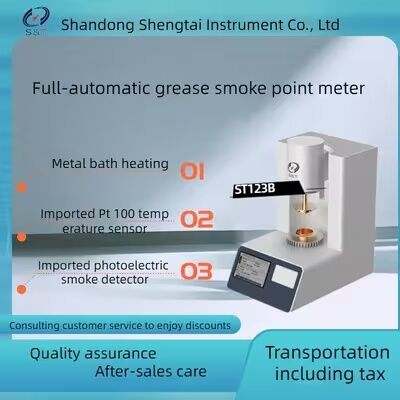

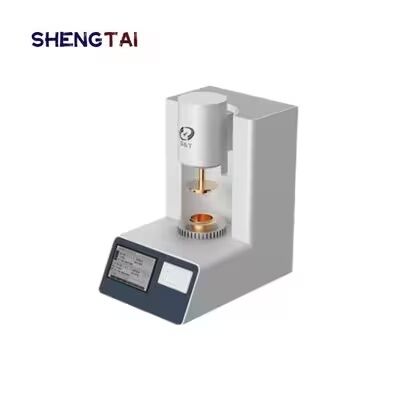

Full-Automatic Vegetable Oil Smoke Point Testing Apparatus Room Temperature～400℃

Main Technical Specifications

1. Power Supply: AC (220±22) V, 50Hz
2. Temperature Measurement: Range: Room Temperature ~ 400℃; Accuracy: 0.1℃
3. Heating Rate: Compliant with GB/T 20795-2006 standards
4. Data Storage: Capable of storing up to 199 sets of historical test results for convenient retrieval
5. Data Output: Equipped with USB flash drive output function, enabling data transmission to PC terminals for long-term storage
6. Output Format: CSV or Excel format supported for USB flash drive data export
7. Data Extension: Configured with a laser printer interface, compatible with HP1108 laser printer (optional accessory)
8. Data Protection: Built-in date and password setting function for data security
9. Standard Printing: Comes with a standard micro-printer for automatic thermal printing of measurement results
10. Testing Principle: Adopts a photoelectric sensor with a wavelength of 430nm
11. Remote Upgrade: Features TCP network transmission function, supporting subsequent remote software upgrades
12. Operating Ambient Temperature: (10～40)℃
13. Relative Humidity: ≤80%
14. Total Power Consumption: ≤500W
15.

16. Name	Automatic plant oil smoke point tester
    working power supply	AC220V±10%, 50Hz
    temperature measurement: range	room temperature ~ 400℃;
    Repeatability	≤2℃
    Reproducibility	≤4℃
    Resolution	0.1℃
    Accuracy	0.5%
    heating rate	in line with GB/T20759 standard
    detection method	photoelectric sensor
    Using embedded system design	the whole process of test automatic detection; The test results can be stored; It has printing function.
