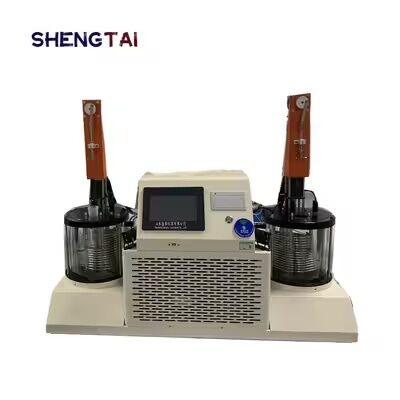

Technical Parameters

• Adopts embedded system design, enabling full-process automatic detection and printing during testing;
• Test results exportable via USB flash drive;
• 7-inch color touch screen: supports test result storage and historical data review;
• On-instrument result printing and automatic mechanical stirring;
• Account management: features audit trail functionality and hierarchical account control (supports three-level account management);
• Operating power supply: AC220V ± 10%; 50Hz;
• Working cold bath: double-layer vacuum glass bath;
• Cold bath temperature control range: -10℃ ~ +170℃;
• Temperature control accuracy: ±0.1℃ (0.01℃ customizable);
• Number of test holes: Dual-hole;
• Refrigeration method: Compressor refrigeration;
• Cooling mode: Air cooling;
• Display: 7-inch touch screen;
• Bath liquid mixing: Automatic mixing by a 6W stirring motor (1200r/min);
• Refrigeration system: New-type refrigeration compressor;
• Data memory: Expandable microcomputer memory up to 16GB;
• Sample mixing: Synchronous gear motor (60 times/minute);
• Storage capacity: Stores up to 199 groups of historical experimental results for easy query;
• Result output: Optional USB flash drive output for long-term computer storage;
• Output format: CSV or Excel (for USB flash drive export);
• Standard printing: Automatic measurement with built-in micro-printer and automatic needle printing;
• Data management: Compatible with LIMS system;
• Data extension: Audit trail function;
• Instrument dimensions: 680 × 450 × 580mm;
• Instrument weight: 38kg.
•

Packing list

Company Introduction

Our Services

After-Sales Service Commitment

• During the warranty period: The seller shall bear the costs of equipment replacement parts, instrument transportation and maintenance;
• Beyond the warranty period: In case of instrument malfunctions, the seller shall waive maintenance fees and only charge for basic material costs and transportation fees.
