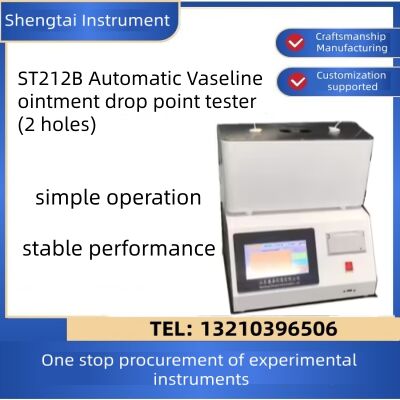

ST212B Automatic Drop Point Tester for Yellow/White Vaseline, Plasters and Ointments

ST212B Automatic Drop Point Tester for Yellow/White Vaseline, Plasters and Ointments

Brand Name: Shengtai Instrument
Model Number: ST212B
MOQ: 1
Payment Terms: T/T
Supply Ability: 5000sets/year
Detail Information
Place of Origin:
CHINA
Certification:
ISO9001
Temperature Measurement Range:
Room Temperature ~ 400 ℃ Resolution: 0.1℃
Ambient Temperature:
10℃ ~ 35℃
Environmental Relative Humidity:
30 ~ 80%RH
Power Supply:
Less Than 2KW
Typing:
English Character Printing
Highlight:

automatic drop point tester for vaseline

,

pharmaceutical ointment drop tester

,

plaster drop point testing instrument

Product Description

ST212B Automatic Drop Point Tester for Yellow/White Vaseline, Plasters and Ointments


The ST212B fully automatic drop point tester for yellow/white Vaseline, plaster and ointment complies with the 2020 Chinese Pharmacopoeia and British Pharmacopoeia standards. With a microprocessor as its core, it integrates mechanical, optoelectronic and micro-detection technologies. It features automatic temperature rise control, automatic adjustment of heating rate, automatic detection and recording of drop point data, as well as automatic printing and output functions, enabling the complete measurement of drop points.

  • Heating Method: Metal bath heating, noiseless, pollution-free, and rapid heating rate;
  • Printing Function: Chinese or English character printing;
  • Printer Type: Micro-needle printer;
  • Test Samples: Vaseline, ointments;
  • Test Item: Drop point determination.


Main Features and Parameters


  1. 7-inch touch screen display;
  2. Imported temperature sensor ensures accurate and stable temperature measurement and control;
  3. Metal bath heating, noiseless, pollution-free, and rapid heating rate;
  4. High-temperature resistant special optical fiber adopted for droplet detection;
  5. Equipped with a built-in clock, eliminating the need to input experimental dates.

  • Applicable Standards: 2020 Chinese Pharmacopoeia (for Vaseline and ointments);
  • Temperature Measurement Range: Room temperature ~ 400℃, Resolution: 0.1℃;
  • Number of Test Holes: 2;
  • Ambient Temperature: 10℃ ~ 35℃;
  • Metal Bath Temperature Control Precision: ±1℃;
  • Environmental Relative Humidity: 30 ~ 80%RH;
  • Power Supply: AC220±10% V, 50HZ±1HZ;
  • Power Consumption: Less than 2KW;
  • Printing Function: Chinese or English character printing;
  • Printer Type: Small thermal printer;
  • Detection Mode: Imported high-precision optical fiber detection;
  • Curve Display: Displays temperature-time curve trend graph;
  • Data Storage: Capable of storing 199 groups of historical experimental results for easy query;
  • Result Output: Optional USB flash drive output function for long-term storage on computers;
  • Output Format: CSV or Excel (for USB flash drive output);
  • Standard Printing: Automatic measurement with micro-printer and automatic thermal sensitive printing;
  • Remote Upgrade: Equipped with TCP network transmission function to support subsequent software remote upgrades;
  • Data Management: Compatible with LIMS system;
  • Data Memory: Expandable microcomputer instrument memory up to 16 gigabytes;
  • Account Management: Password-protected account management with admin and sub-account settings.
  •
  • Packing list

    S/N Name Quantity Unit Remarks
    1 host 1 set
    2 Drop some grease cup 2 piece
    3 Drip test tube 2 piece
    4 Power cord 1 piece
    5 Certificate warranty card 1 copy
    6 Instructions 1 copy
    7 Printing paper 1 volume






ST212B Automatic Drop Point Tester for Yellow/White Vaseline, Plasters and Ointments 0



Our Services



After-Sales Service Commitment


For products sold by our company, we provide the following after-sales service commitments:

  • One-year warranty period with long-term technical support beyond the warranty;
  • During the warranty period: The seller shall bear the costs of equipment replacement parts, instrument transportation and maintenance;
  • Beyond the warranty period: The seller shall waive maintenance fees and only charge for basic material costs and transportation fees in case of instrument malfunctions.
