| Brand Name: | Shengtai Instrument |
| Model Number: | SH417 |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 2000set |

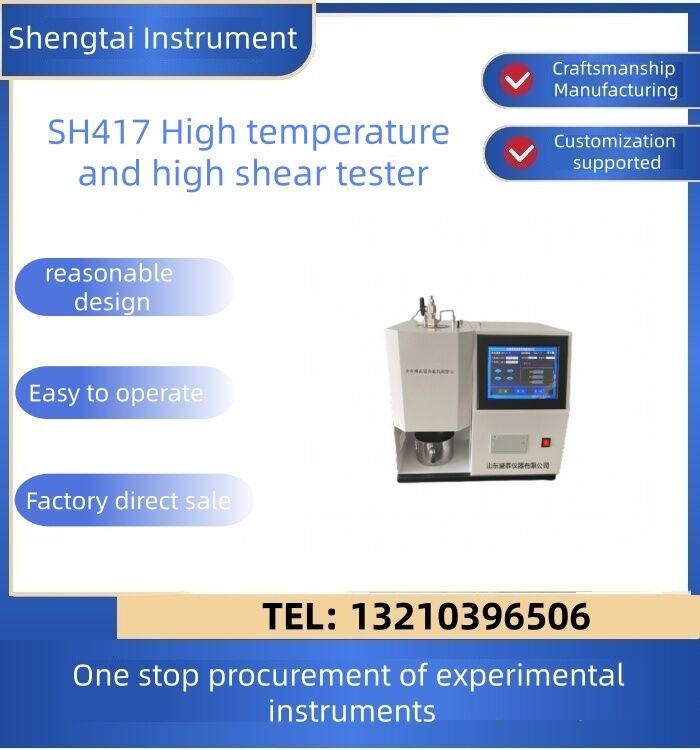

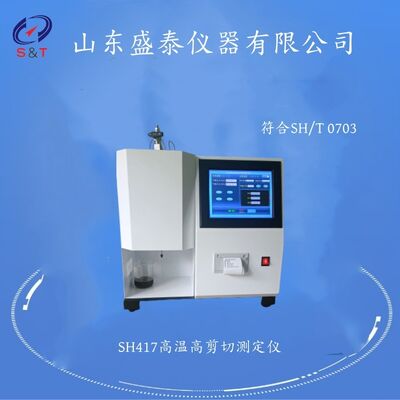

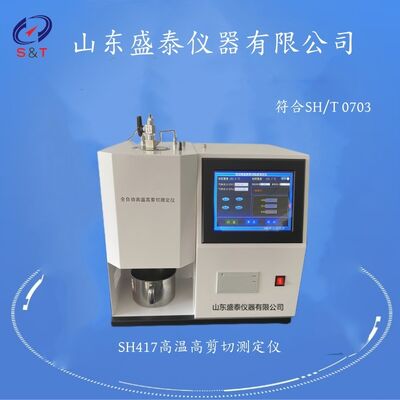

The SH417 High Temperature High Shear Tester is designed and manufactured in strict compliance with the ASTM D5481 standard. It employs a multi-capillary viscometer system to determine the apparent viscosity of lubricants under high-temperature and high-shear-rate conditions, fully satisfying all technical requirements specified in the standard test method.
This instrument is suitable for measuring the apparent viscosity of lubricating oil at high temperature and high shear rate — namely, the dynamic viscosity of lubricating oil under such conditions, which is also defined as the HTHS index.
It is additionally applicable for determining the dynamic viscosity of lubricating oil at high temperature and high shear rate, as well as evaluating the high-temperature high-shear characteristics of lubricating oil, in accordance with the SH/T 0703-2001 standard Apparent Viscosity Measurement Method (Multi-Capillary Viscometer Method).
Its testing principle is as follows: The test is conducted at a controlled temperature of 150℃ ± 0.1℃. Driven by nitrogen (or carbon dioxide) pressure, the sample flows through the capillary viscometer. By measuring the sample’s flow time and the applied pressure, the apparent shear rate and corresponding apparent viscosity of the capillary viscometer can be derived. Combined with the calibration curves of various viscometer cartridges, the viscosity of the tested oil sample at the measured pressure can be calculated accurately.
Automatic High Temperature High Shear Viscosity Tester
High-Temperature High-Shear Dynamic Viscosity Tester
High-Temperature Adhesive Tape Shear Testing Machine
ASTM D5481 High-Temperature High-Shear Tester
ASTM D5481 High-Temperature High-Shear Hths Oil Dynamic Apparent Viscosity Tester
High-Temperature High-Shear Dynamic Viscosity Tester
High-Temperature Adhesive Tape Shear Tester for Lab/Laboratory Equipment
1. The instrument combines the advantages of all kinds of products at home and abroad, and makes a series of improvements in the appearance design and the use function of operating procedures, so that the instrument is more satisfied with the users
2. All the accessories of the instrument are imported original components and processing technology, which can be exchanged with imported instruments
3. The special high shear viscosity microcomputer software makes the test process of the instrument more simple, accurate and convenient
4. The measuring units of the instrument are calibrated with 4 kinds of American Kannen standard oil, and the experimental data are accurate and reliable
5, The instrument is equipped with special pressure reducing valve, convenient for users to connect the cylinder and operation.
6, Glass capillary can be completely replaced with the import, fully meet the ASTM and SH/T standard requirements, diameter 0.15mm, 15-18mm long
8, all aluminum material manufacture, neat and beautiful, small size
9, large touch type LCD screen can display all the test parameters, temperature, flow changes and other information directly
| Applicable standard | ASTM D5481 SH/T0703 |
| Heating method | imported electric heating rod heating |
| he test temperature | normal temperature ~150℃ |
| temperature control accuracy | ±0.1℃ |
| Working unit | 1 unit tube |
| capillary diameter | 0.15mm |
| capillary length | 15-18mm |
| the pressure range | 350KPa -- 3500KPa |
| pressure control accuracy | + 0.1% |
| Sample volume | 7mL |
| environmental requirements | 15℃--30℃, relative humidity 10% to 75%(no condensation), installation class II; |
| operation interface | large touch type LCD screen |
| Data content | Test pressure, test time, sample constant temperature time, test record, test results |
| Calculation of the results | the high temperature and high shear dynamic viscosity calculation software |
| working power supply | AC220V/50HZ |
| working air source |
external nitrogen or carbon dioxide, with pressure reducing valve, the maximum pressure is not less than 3500KPa (500PSI)(self-provided)
|
| Instrument size and weight: 400 * 430 * 850mm Net weight: 35KG | |
Packing list
| S/N | Name | Unit | Quantity | Remarks |
| 1 | Host | Set | 1 | |
| 2 | Pressure relief valve | piece | 1 | |
| 3 | Copper tube | meter | 2 | |
| 4 | Standard oil | bottle | 3 | |
| 5 | Waste oil receiver | piece | 1 | |
| 6 | Filter screen | piece | 1 | |
| 7 | thermometer | piece | 1 | 0~200℃ |
| 8 | Syringe | piece | 1 | All have been installed on the instrument |
| 9 | Viscometer | set | 1 | |
| 10 | Glass capillary | piece | 1 | |
| 11 | Adapter | piece | 1 | |
| 12 | Syringe hose | piece | 1 | |
| 13 | Instructions | copy | 1 | |
| 14 | Certificate warranty card | copy | 1 |
