| Brand Name: | Shengtai Instrument |
| Model Number: | SH8017 |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 10000sets/year |

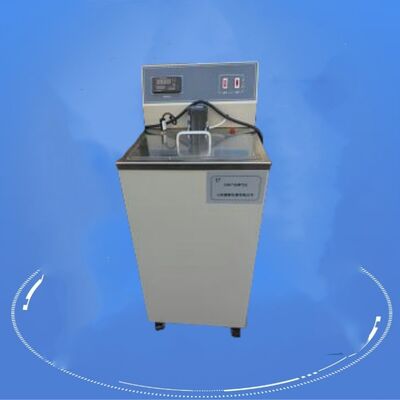

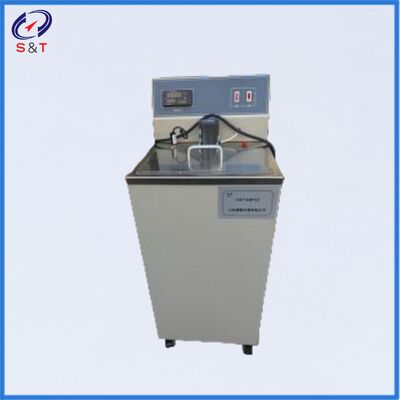

The SH8017 Petroleum Products Vapor Pressure Tester is engineered and manufactured in strict compliance with China National Standard GB/T 8017 Vapor Pressure Determination of Petroleum Products (Reid Method). It is specifically designed for measuring the vapor pressure of gasoline, volatile crude oil, and other volatile petroleum products.
Vapor Pressure Tester for Petroleum Products (Reid method)
ASTM D323 Petroleum Products Vapor Pressure Tester (Reid Method)
vapor pressure tester for petroleum products, Reid Vapor Pressure Testing machine
Petroleum Products Saturated Vapor Pressure Tester (Reid Method)
Reid Method Manual Type Petroleum Product Vapor Pressure Tester
Reid Method Vapor Pressure Tester
ASTM D323 Vapor Pressure Tester
II. Main technical indexes and parameters
1, working power supply: AC220V±10%, 50Hz;
2, water bath heating power: 1600W;
3, the use of water bath temperature range: room temperature ~90℃;
4, water bath temperature control accuracy: + 0.1℃;
5, pressure gauge accuracy: + 0.4%;
6, ambient temperature: -10℃~35℃.
7, relative humidity: ≤85%.
8. Power consumption of the whole machine: no more than 1700W
| Description | Parameters |
| Input power | AC 220V ± 5% 50Hz |
| The use of water bath temperature range |
room temperature ~100℃;
|
| Temperature control accuracy | ± 0.1 ºC |
| Heating power | 1.6KW |
| Pressure gauge | Round Hand gauge 0 ~ 200KPa |
| pressure gauge accuracy | + 0.4%; |
| Ambient temperature | -10℃~35℃. |
| Relative humidity | <85% RH |
| Power consumption of the whole machine: no more than 1700W | |
| Package size: 48 * 45 * 75cm weight 50kg | |
Packing list
| S/N | Name | Unit | Quantity | Remarks |
| 1 | Vapor pressure meter | set | 1 | |
| 2 | Steam bomb | set | 2 | |
| 3 | Pressure gauge | piece | 2 | |
| 4 | Mercury thermometer | piece | 1 | |
| 5 | Instruction | copy | 1 | |
| 6 | Packing list | copy | 1 | |
| 7 | Certificate warranty card | copy | 1 |
