Food Testing Instruments
Created with Pixso.

6 Samples Food Testing Instruments Soxhlet Fat Analyzer Grain Food Fat Testing

6 Samples Food Testing Instruments Soxhlet Fat Analyzer Grain Food Fat Testing

Brand Name: Shengtai Instrument
Model Number: ST120K
MOQ: 1
Payment Terms: T/T
Supply Ability: 10000sets/year
Detail Information
Place of Origin:
China
Force Measurement Resolution:
1/10000 (e.g., 200kg ÷ 10000=0.02kg); 2kg (resolution 0.0002), 5kg (resolution 0.0005), 10kg (resolution 0.001)
Force Measurement Accuracy:
 Better Than ± 1%
Measurement Range:
1-100kg
Displacement Resolution:
0.01mm
Test Speed:
0.5-500mm/min
Test Stroke:
200mm
Machine Weight:
About 18kg
Overall Dimension:
300 * 420 * 650 Mm (w * D * H)
Power Supply:
single-phase, AC220v50hz.
Packaging Details:
wooden case
Highlight:

6 Samples Food Testing Instruments

,

Grain Food Testing Instruments

,

100kg soxhlet fat analyzer

Product Description

Food Testing Instruments Crude Fat Tester Time Soxhlet Fat Analyzer 6 Samples Grain Food Fat Testing

6 Samples Food Testing Instruments Soxhlet Fat Analyzer Grain Food Fat Testing 0

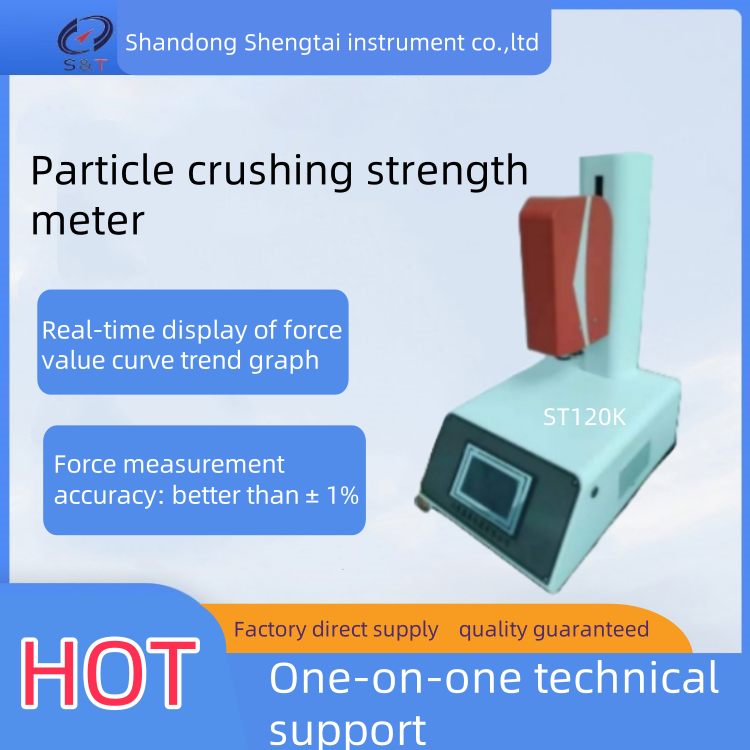

The ST120K particle crushing strength tester is designed and manufactured in accordance with the requirements of GB/T2946-2018 for the determination of ammonium chloride and GB/T2945 for the determination of ammonium nitrate. It meets the requirements of national standards, and is continuously optimized, innovated, and optimized. The electrical control system achieves simplified operation, making the operation more simple, convenient, and reliable. HG/T2783-1996 Test Method for Compressive Crushing Strength of Molecular Sieves, HG/T3927-2007 Determination of Compressive Strength in Industrial Activated Alumina

Functional features

  • Real-time display of force value curve trend graph
  • Automatic shutdown can be achieved by setting the positioning displacement to reach the set distance.
  • Compression test, automatic shutdown after the product is compressed to the maximum value.
  • Automatically measure the size of particle strength, automatically produce results, and automatically calculate the maximum and minimum values for multiple sets of data.

Technical parameter

  • Force measurement resolution: 1/10000 (e.g., 200kg ÷ 10000=0.02kg);

2kg (resolution 0.0002), 5kg (resolution 0.0005), 10kg (resolution 0.001)

  • Force measurement accuracy: better than ± 1%;
  • Measurement range: 1-100kg
  • Displacement resolution: 0.01mm
  • Test speed: 0.5-500mm/min;
  • Test stroke: 200mm;
  • Machine weight: about 18kg;
  • Overall dimension: 300 * 420 * 650 mm (w * d * h)
  • Power supply: single-phase, AC220v50hz.

Packing List

S/N Name Quantity Unit Remarks
1 Host 1 set
2 Power cord 1 piece
3 Fuse tube 1 piece 10A in the safety seat
4 Instruction manual 1 copy
5 Certificate warranty card 1 copy
