| Brand Name: | Shengtai Instrument |
| Model Number: | SH6533A |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 10000 sets/year |

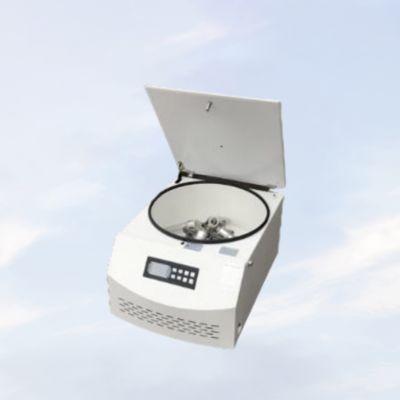

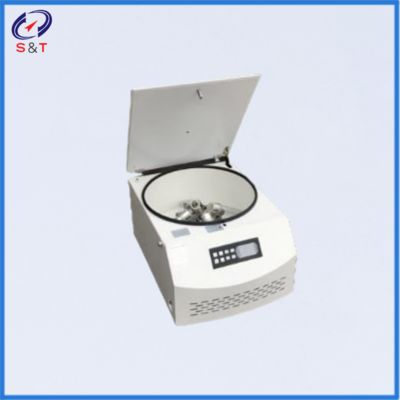

SH6533A crude oil moisture and sediment analyzer is designed for the determination of moisture and sediment in crude oil using a centrifuge, and meets the requirements of GB/T6533-86 standard. Use centrifuge separation method to determine water and sediment in crude oil. It is an ideal separation equipment for moisture determination in the oil extraction industry and scientific research institutions.
Meet ASTM D4007 ASTM D1796
Main technical specifications, and performance characteristics:
● Microcomputer control, touch panel, intuitive digital display, automatic memory of operating parameters, RCF direct start, convenient operation and use
● High torque brushless variable frequency motor drive, European imported ultra high speed bearings, smooth operation, maintenance free
Steel body, stainless steel centrifugal chamber, imported key components, corrosion-resistant, easy to clean, durable
● Protection functions such as overspeed, door cover, and imbalance, as well as life calculation functions for the main engine and rotor, ensure safety.
Equipped with high-power heating design, it heats up quickly; Exclusive SCT speed control technology, fast acceleration and deceleration, time-saving and efficient
● Adopting uniform heating method, fast heating and high temperature control accuracy
● Microcomputer control, high torque brushless DC variable frequency motor; Stable speed and low motor noise
Adopting a silent electromechanical integrated motor door lock.
Equipped with dual shock absorbers and automatic balancing function, it runs smoothly and can be separated by visual balance.
Parameters
| model | SH6533A |
| Maximum speed | 4000r/min (recommended speed of 3000r/min when using glass tubes) |
| Maximum relative centrifugal force | 4390 × g (maximum recommended centrifugal force when using glass tubes is 2362 × g) |
| Petroleum specific rotor | 4×100ml |
| temperature range | Room temperature -80 ℃ |
| Timing range | 0-99min |
| Power Supply | AC 220V 50Hz 18A |
| Whole machine noise | ≤65dB |
| External dimensions | 700×560×350mm |
| weight | 55kg |
Packing list
| S/N | Name | Unit | Quantity | Remarks |
| 1 | Host | set | 1 | |
| 2 | Centrifugal tube | set | 1 | |
| 3 | instructions | piece | 1 | |
| 4 | Certificate of Conformity Warranty Card | piece | 1 | |
