| Brand Name: | Shengtai Instrument |
| Model Number: | SH6531 |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 10000sets/year |

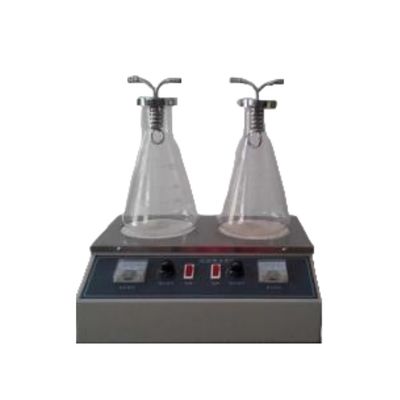

SH6531 Petroleum precipitate tester is according to the People's Republic of China standard GB/T6531 "Determination of precipitate in crude oil and fuel oil" and ASTMD 473 , according to GB/T6531 standard to determine the content of precipitate in crude oil and fuel oil.
This instrument is a double structure, can carry out two samples at the same time test.
ASTM D473 Petroleum Product Oil Sediment Tester
ASTM D473 Sediment Content Testing Equipment Residual Fuel Oils Total Sediment Tester
The standard:ASTM D473
Main technical indicators
1, working power supply: AC220V±10%, 50Hz.
2. Heating power: 300W×2.
3, heating control: bidirectional silicon controlled stepless voltage regulation control.
4. Ambient temperature: ≤35℃.
5, relative humidity: ≤85%.
6. Power consumption of the whole machine: no more than 600W.
7. Package size: 50 * 38 * 32 cm, weight 13kg
| Rated voltage | AC220V±10% 50Hz |
| Heating power: | 1000W |
| Temperature control mode | Digital display |
| Temperature control range | Room temperature~90°C |
| Temperature control precision | ±0.1 °C |
| Stirring | Pump loop |
| Test group | 2 groups |
| Ambient temperature: Temperature: 20~30°C Humidity≤85% | |
| Package size: 50 * 38 * 32 cm, weight 13kg | |
Packing list
| S/N | Name | Unit | Quantity | Remarks |
| 1 | Host | set | 1 | |
| 2 | Conical flask 1000ml | piece | 2 | Glass |
| 3 | condenser | piece | 2 | Metal |
| 4 | Wire support | piece | 2 | stainless steel |
| 5 | Extraction sleeve | piece | 2 | ceramics |
| 6 | Power cord | piece | 1 | |
| 7 | Instruction | copy | 1 | |
| 8 | Certificate warranty card | copy | 1 |
