| Brand Name: | Shengtai Instrument |
| Model Number: | SH134 |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 100000sets/year |

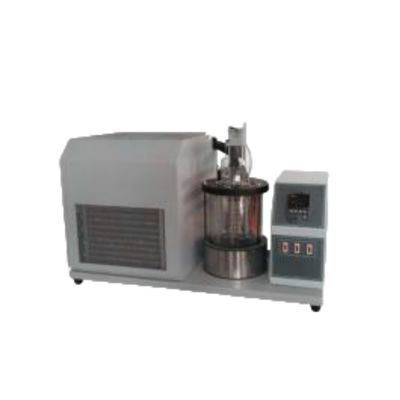

SH134 refrigerating oil flocculation point tester is designed and manufactured according to "refrigerating oil flocculation point determination method" GB/T12577, DIN51351.
It is suitable for the determination of flocculation point of mineral cold engine oil and synthetic cold engine oil.
The principle of the flocculation point tester test is: a certain amount of sample and refrigerant mixed in the test tube, intersoluble into the cold bath of the flocculation point tester, according to a certain speed gradually cooling cooling, under the light observation, when there began to be opacifying or flocculation phenomenon, write down the temperature at this time.
Frozen oil flocculation point tester is suitable for mineral oil and synthetic oil refrigerating oils.
DIN51351 refrigerating oil flocculation point determination
Technical indicators:
Applicable standard: GB/T12577 DIN51351
Refrigeration method: imported double compressors overlapping refrigeration
Observation of heat preservation and transparency of Dewar flask
Temperature control mode: imported digital display PID temperature controller
Temperature control range: normal temperature ~ -70±0.5℃
Vacation system: vacuum pump suction quick connector connection
Timing mode: digital display timer experiment is over, sound alarm prompt
Sample unit: double tube
| Applicable standard | GB/T12577 DIN51351 |
| Refrigeration method |
imported double compressors overlapping refrigeration Observation of heat preservation and transparency of Dewar flask
|
| Temperature control mode |
imported digital display PID temperature controller
|
| Temperature control range |
normal temperature ~ -70±0.5℃
|
| Vacation system |
vacuum pump suction quick connector connection
|
| Timing mode | digital display timer experiment is over, sound alarm prompt |
| Sample unit |
double tube
|
| Instrument size: 720mm * 450mm * 680mm Weight: 75kg | |
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | set | |
| 2 | Grinding mouth connector | 1 | piece | |
| 3 | test tube | 1 | piece | |
| 4 | Temperature sensor | 1 | piece | |
| 5 | Ball shaped closed cap | 1 | Piece | |
| 6 | Power cord | 1 | piece | |
| 7 | Instruction | 1 | copy | |
| 8 | Packing list | 1 | copy | |
| 9 | Certificate warranty card | 1 | copy |
