| Brand Name: | Shengtai Instrument |
| Model Number: | SH8019A |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 10000 sets/year |

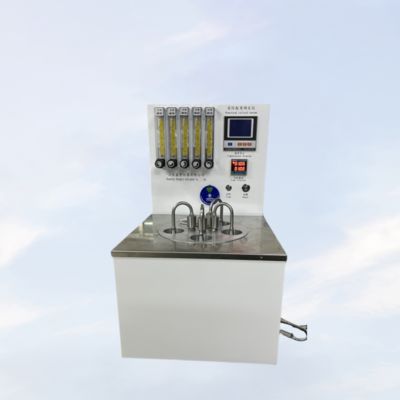

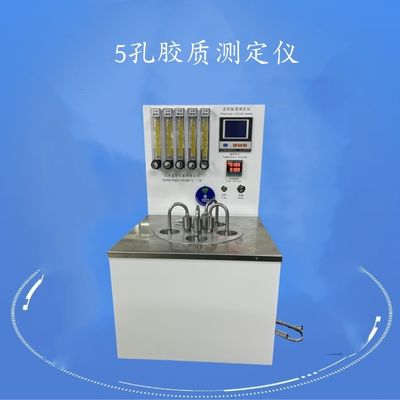

SH8019A Existent Gum Tester Jet Evaporation Method Petroleum Tester is specially used for measuring the actual gum content in aviation gasoline and automotive gasoline.
It is suitable for the actual gum test of aviation gasoline and automobile gasoline according to the method specified in ASTM D381 equivalent to GB/T 8019-2008 "Determination of fuel gum content by jet evaporation method". It is equipped with special oil-free silent air compressor.
Main technical specification and parameters:
Air Jet Evaporation ASTM D381
ASTM D381 Apparatus for Existent Gum Content of Aviation Fuels, and Motor
ASTM D381 Aviation Fuels and Gasoline Existent Gum Tester
Jet Evaporation Method Petroleum Tester ASTM D381 evaporation
ASTM D381 Existent Gum Tester for Fuel (Steam jet evaporation method)
| Power supply | AC(220±10%)V,50Hz,2500W |
| Dimension of evaporation bath | Φ260mm*130mm |
| Sample positions | 5 positions |
| Dimension of sample positions | Φ51mm*70mm |
| Working temperature | (160~165)ºC |
| Temperature control | Automatic |
| Temperature display | Digital display |
| Flow display | Displayed by a ball float type flowmeter. |
| Working pressure of air reducing valve | 0.035MPa |
| Air source | External connection, over (1000±150)ml/s |
| Dimension | 590*480*340mm (Thermometer holder is not included) |
Main technical parameters and performance
1, working power supply: AC (220±10%) V, 50Hz, 3500W.
2, evaporation bath type, size: aluminum bath block Φ260 ㎜×130mm (diameter × high).
3. Number of test holes: 5.
4, the test hole size: Φ 51 mm ×70mm (diameter × depth).
5, working temperature: (160~165)℃.
6, temperature control method: automatic temperature control.
7, temperature display: digital display.
8, flow display: by the float type air flow meter display.
9, air pressure reducing valve working pressure: 0.07Mpa.
10, nozzle outlet air flow rate: per hole (1000±150)mL/ s.
11, appearance size: 590㎜×480㎜×340mm (length × width × height, not including the thermometer holder).
Packing list
| S/N | Name | Unit | Quantity | Remarks |
| 1 | Host | set | 1 | |
| 2 | Trumpet nozzle | piece | 5 | |
| 3 | Beaker | piece | 5 | |
| 4 | purifier | set | 1 | |
| 5 | Instruction | copy | 1 | |
| 6 | Packing list | copy | 1 | |
| 7 | Certificate warranty card | copy | 1 | |
| 8 |
