| Brand Name: | Shengtai Instrument |
| Model Number: | SH8017B |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 10000sets/year |
SH8017B Automatic petroleum product vapor pressure tester is designed and manufactured according to ASTM D323 and GB/T8017 "petroleum product vapor pressure measurement method (Reid method)".
Suitable for measuring the vapor pressure of gasoline, volatile crude oil and other volatile petroleum products.

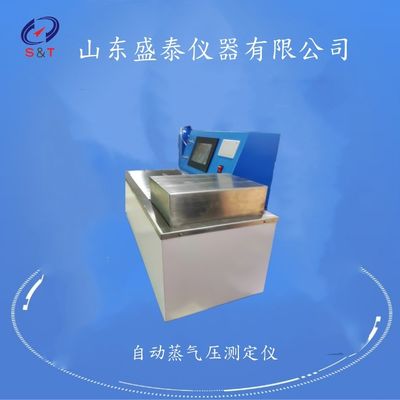

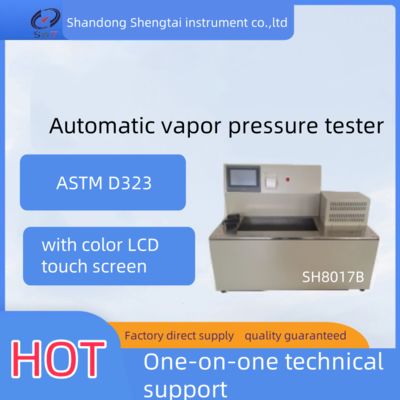

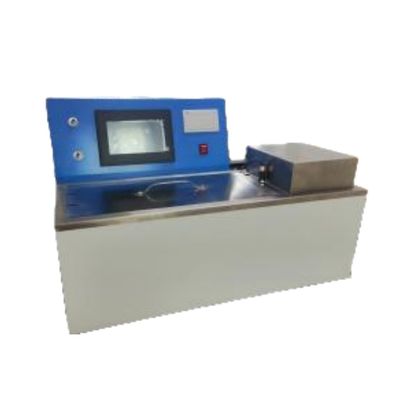

The instrument is mainly composed of color LCD touch screen, water bath box and temperature control device, vapor pressure bomb, pressure sensor, mechanical rotation and other parts.
With the use of flexible, easy to move, and with printing, fault self - check and other characteristics.
Fully Automatic Petroleum Products Saturated Vapor Pressure Tester (Reid Method)
Automatic Reid Method Vapor Pressure Tester for Petroleum Products
Automatic Vapor Pressure Tester (Reid Method) for Petroleum Products
ASTM D323 Reid Method Automatic Saturated Vapor Pressure Tester Analyzer
Main Performance Characteristics
1, 7 inch color touch screen, do not need training can be completed according to the screen prompts.
2, Chinese operation interface, page arbitrary switch, simple and convenient operation.
Automatic pressure detection, collection, calculation, automatic temperature control, automatic timing, automatic printing results, super capacity storage function, can store tens of thousands of data, can be queried.
3, Constant temperature water bath by circulation system, with mixing function, make the water bath temperature uniform without dead Angle, high temperature control accuracy.
4, safety performance: automatic diagnosis, over temperature alarm and automatically cut off the power supply of the heater, the test is completed with alarm function.
5, With on-line adjustment function, can effectively correct the deviation of pressure and temperature sensor.
Main technical parameters
1, power source: AC220V ±10% 50Hz
2. Heating work rate: 1.8KW
3, stirring motor power: 15W
4, temperature control range: room temperature ~ 90℃
5, temperature control precision: ≤±0.1℃
6, pressure fan: 0 ~ 200kPa
7. Number of hanging shells: 2 shells
8, the number of rotation Angle: the automatic rotation Angle of the instrument is 350°
9. Sensor: PT100
10. External size: 900 × 450 × 650 weight:50kg
Packing size 1100 × 650 × 580mm mm 60kg
| 1. Power supply: | AC(220±10%)V, 50Hz |
| 2. Heating work rate : | ≤1800W |
| 3. Stirring motor power : |
15W
|
| 4. Temperature control range : | room temperature ~ 90℃ |
| 5. Temperature control accuracy: | ±0.1ºC |
| 6. Number of hanging shells |
2 shells
|
| 7. Pressure range: | (0~200)kPa or (0~29)psi |
| 8. The number of rotation Angle |
the automatic rotation Angle of the instrument is 350°
|
| 9.Relative humidity: | ≤85% |
|
10.Dimension: 900 × 450 × 650 weight:50kg
|
|
Packing list
| S/N | Name | Unit | quantity | Remarks |
| 1 | Vapor pressure meter | set | 1 | |
| 2 | Steam bomb | set | 2 | |
| 3 | Pressure gauge | piece | 2 | |
| 4 | Temperature sensor | piece | 1 | |
| 5 | Including sample transfer kettle | Piece | 1 | Optional |
| 6 | Instruction | copy | 1 | |
| 7 | Packing list | copy | 1 | |
| 8 | Certificate warranty card | copy | 1 |
