| Brand Name: | Shengtai Instrument |
| Model Number: | SH0804 |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 100000sets/year |

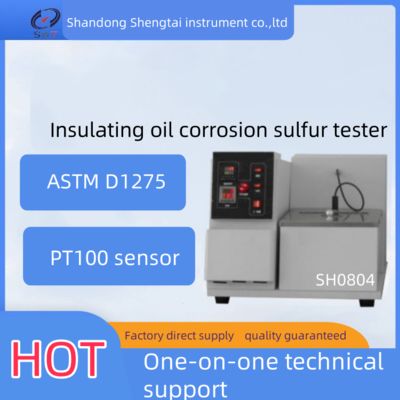

SH0804 electrical insulating oil corrosive sulfur tester is designed and manufactured by SH/T0804 SH/T0304standard and ASTM D1275;
Test method for the detection of corrosive sulfur affecting the operation of electrical equipment in mineral insulating oil for power equipment.
The performance characteristics of
1. The surface of the instrument is treated with electrostatic spray, anti-corrosion and easy to clean

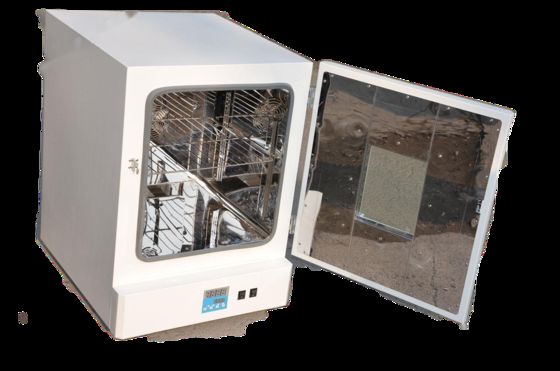

2. Stainless steel heating box, transparent observation window, easy operation, the top of the hole inserted thermometer, circular drum mode
3. Microcomputer temperature control, PT100 sensor, PID digital display, high temperature control accuracy
4. Digital display timer, accuracy deviation per hour is no more than 2 minutes to record the test time, with time alarm
Technical parameters
| Implementation standard |
SH/T0804 sh/t0304 ASTM D1275
|
| Operating temperature |
normal temperature ~ 200℃
|
| Temperature control accuracy | ±1℃ |
| Temperature control mode |
microcomputer temperature control, PT100 sensor, PID digital display
|
| Timing mode |
digital display timer, accuracy deviation per hour is no more than 2 minutes to record the test time, with time alarm
|
| Standard silver sample | cold rolled, 20×40×0.5mm, purity 99.99 |
| Working power supply |
AC220V 50HZ
|
| Power |
1.5KW
|
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | set | |
| 2 | Temperature sensor | 1 | piece | On the host |
| 3 | 100ml flask | 2 | piece | With plug |
| 4 |
Standard silver test piece Or Standard copper test piece |
2 | piece | |
| 5 | power cord | 1 | piece | |
| 6 | Instructions | 1 | copy | |
| 7 | Packing list | 1 | copy | |
| 8 | Certificate warranty card | 1 | copy |
