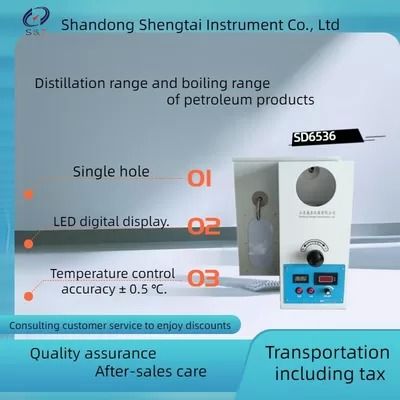

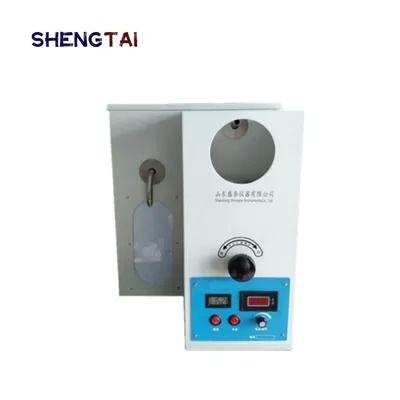

Distillation Apparatus-Distillation Tester-Oil Distillation Apparatus-Petroleum SD6536
SD6536 Petroleum product distillation apparatus is based on the standard of the People's Republic of China GB/T6536 GB/T7534 the distillation of petroleum products determination act - 2004 "industrial use volatile organic liquid boiling range measurement, the requirements of the design and manufacture, suitable for according to the standard of GB/T6536 gasoline, aviation gasoline, steam jet fuel, special boiling point solvents, naphtha, diesel oil, distillate fuel oil products and similar determination of distillation, and in accordance with the standards of GB/T7534 for volatile organic liquid used in industry, raw material in organic solvent such as the determination of boiling range of the instrument.
Petroleum product distillate boiling range tester
Distillation Tester for Petroleum products
Distillation Apparatus for Petroleum Products
Distillation Analyzer for Petroleum Oils ASTMD 86
Automatical ASTM D Standard Petroleum Distillation Range Testing Apparatus
Distillation Apparatus-Distillation Tester
Oil Distillation Apparatus-Petroleum Distillation Apparatus
Main technical parameters
| 1 | Power supply | AC(220±10%)V , 50Hz. |
| 2 | Heating power of electric furnace | 1000W |
| 3 | Measuring cylinder volume | 100 mL, indexing 1 mL. |
| 4 | Electric furnace movable plate | made of silicon carbide plate with hole diameter of φ 38㎜, φ 50㎜. |
| 5 | Thermometer |
full immersion stick, scale range (-2 ~ +300) ℃ and (-2 ~ +400) ℃, The graduation is 1 ℃ (thermometer can be selected according to demand).
|
| 6 | temperature control range | room temperature ~ 400℃ arbitrary setting. |
| 7 | Temperature control accuracy | ±0.5℃ |
| 8 | Number of test holes: | single hole |
| 9 | Temperature display mode |
LED digital display.
|
| 10 | The distillation flask | 125mL, in line with the requirements of GB/T6536. |
| 11 |
Overall dimension: 400mm × 430㎜ × 500 mm (long × wide × High)
Instrument weight: 20kg |
|
Packing list
| S/N | Name | Unit | Quantity |
| 1 | Host | set | 1 |
| 2 | Distillation flask(125 ml) | piece | 1 |
| 3 | thermometer | piece | 1 |
| 4 | Glass tank(Ф100×240) | piece | 1 |
| 5 | Silicone plug(3#,4#) | piece | One for each |
| 6 | Silicon carbide plateφ38,φ50 | piece | One for each |
| 7 | Graduated cylinder(100ml) | piece | 1 |
| 8 | Thermometer retainer(1#) | piece | 2 |
| 9 | Observation glass | piece | 1 |
| 10 | Baffle cover | piece | 1 |
| 11 | power cord | piece | 1 |
| 12 | instruction manual | copy | 1 |
| 13 | Certificate warranty card | copy | 1 |
