| Brand Name: | Shengtai Instrument |
| Model Number: | SD6536AZ |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 10000sets/year |
Volatile organic liquids for industrial use Determination of boiling range Distillation boiling range tester
Purpose and scope of application

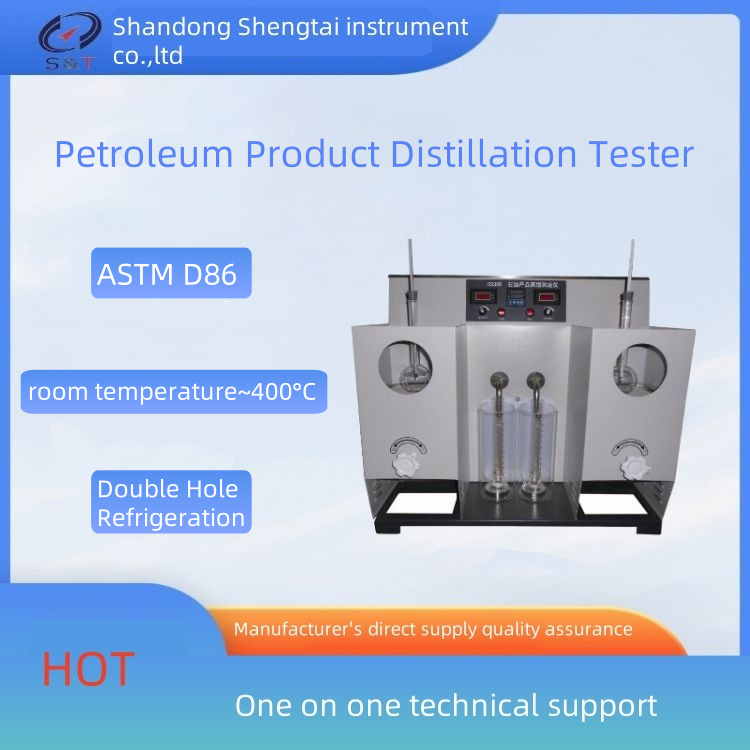

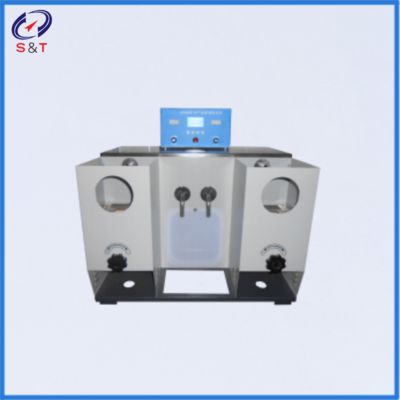

SD6536A petroleum product distillation apparatus (double holes) is based on the standard of the People's Republic of China GB/T6536 requirements stipulated in "the distillation of petroleum products determination method of design and manufacture, suitable for according to the standard of GB/T6536 gasoline, aviation gasoline, steam jet fuel, special boiling point solvents, naphtha, diesel oil, distillate fuel oil products and similar distillation.
Distillation Tester (low temperature Double units)
Distillation Tester (Double Units)
ASTM D86 Distillation Tester (Double Units)
Main technical parameters and technical characteristics
(1) Main technical parameters
⑴ Power supply: AC220V±10%, 50Hz.
⑵ Heating power of electric furnace: 1000W×2.
⑶ Measuring cylinder volume: 100 mL, indexing 1 mL.
The distillation flask: 125mL, in line with the requirements of GB/T6536.
⑸ thermometer: full immersion stick, scale range (-2 ~ +300) ℃ and (-2 ~ +400) ℃, 1℃.
The electric furnace plate: silicon carbide plate manufacturing, aperture is Φ 38㎜, Φ 50㎜.
⑺ temperature controller: ① temperature control range: (room temperature ~ 80) ℃ arbitrary setting.
② Temperature control accuracy: ±0.5℃.
③ Temperature display mode: LED digital display.
| Item | SD-6536A Distillation Tester |
| Test standard | GB/T6536, GB/T7534 |
| Suitable for | gasoline, jet fuels, special boiling point solvent, naphtha, diesel oil, distillate and other petroleum products |
| Features | Can test two samples simultaneity |
| Heating power of electric furnace | 1000 W*2, heating power can be continuously adjusted |
| Volume of graduated flask | 100 ml with scale division of 1ml |
| Distillation flask | 125 ml |
| Thermometer | -2~300°C, and -2~400°C |
| Temperature controlling range | Ambient~400°C |
| Receiver compartment temperature | 1 ~ 60°C |
| Temperature controlling accuracy | ±0.5°C |
| Power supply | AC 220V±10%, 50 Hz |
| Ambient temperature: ≤+35°C | ≤+35°C |
| Relative humidity | ≤85% |
| Total power consumption | ≤2500 W |
|
Overall dimension: 760mm × 430㎜ × 500 mm (long × wide × High)
Instrument weight: 28kg |
|
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | set | |
| 2 | Distilled flask(125 ml) | 2 | piece | |
| 3 | aquarium | 2 | piece | |
| 4 | Silica gel plug | 4 | piece | |
| 5 | Silicon carbide plate, aperture Φ 32㎜, Φ 38㎜, Φ 50㎜ | 2 | piece | |
| 6 | Measuring cylinder (100ml) | 2 | piece | |
| 7 | Test platform | 2 | piece | |
| 8 | power cord | 1 | piece | |
| 9 | thermometer | 2 | piece | |
| 10 | fuse tube | 1 | piece | 10A |
| 11 | Operating instruction | 1 | COPY | |
| 12 | packing list | 1 | COPY | |
| 13 | Certificate of approval | 1 | COPY |
