| Brand Name: | Shengtai Instrument |
| Model Number: | SH113F |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 100000sets/year |

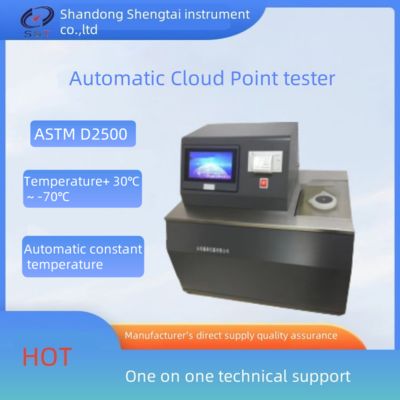

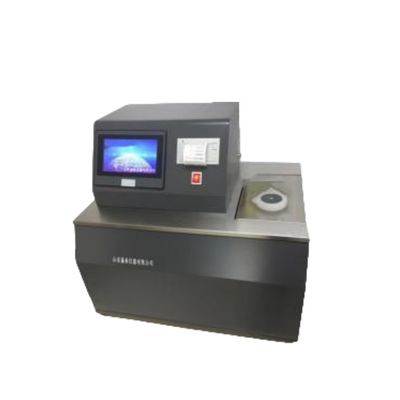

SH113F Automatic Cloud point tester according to the standard of the People's Republic of China "oil cloud point determination method (GB/T6986-2014) for design and manufacture, using multiple single chip control parts, automatic cooling, automatic constant temperature, automatic detection, and automatically print output. Form cold bath box adopts dry well, hysteresis of small, fast cooling, do not need other cooling medium, easy to use and maintain. USES the high performance infrared detection technology, high detection sensitivity, reliability.
Products also comply with ASTM D2500.
Characteristics and Parameters:
● Compliance with the criteria: GB / T6986 ASTM D2500
● Human-machine interface: 7-inch color LCD touch
●Refrigeration mode: double stack type double compressor refrigeration.
● Test cold trap: 1.
● Detection method: imported photoelectric switch detection
● Standard micro-printer automatic measurement, automatic printing
● Without personnel operation, the refrigerator automatic closing time will be set within 0-50min to avoid frequent opening of the compressor and prolong the service life of the instrument,
● Number of test holes: single hole
● Temperature range: + 30℃ ~ -70℃
● Temperature control accuracy: <± 0.1℃
● Sample size: Place the test tube scale line
● Refrigeration medium: metal bath refrigeration
● Printer: a small thermal sensitive printer
● Storage method: the experimental results can store 1000 sets of historical data for easy query；
● Results output: at the same time can be equipped with U disk output function, output to the PC terminal for long-term storage
● Output format: The result U disk output format is CSV or excel.
★ Remote upgrade: with TCP network transmission function, can upgrade software later (optional)
★ Data management: Connect to limis system (optional)
● Instrument size: 650 * 480 * 620mm Instrument weight: 75kg
● Package size: 690 * 520 * 660 Package weight: 80k
| Model |
SH113F Automatic Cloud point tester
|
|
| Applicable standards | ASTM D2500.GB/T6986 | |
| Temperature measurement range | -70 ~ 50℃ | |
| Temperature control accuracy | < ±0.1℃ | |
| Refrigeration medium | metal bath refrigeration | |
| Instrument size: 650 * 480 * 620mm Instrument weight: 75kg | ||
| Package size: 690 * 520 * 660 Package weight: 80kg | ||
| Cloud point detection | optical fiber detection | |
| Printer | a small thermal printer | |
| Human-machine interface | 7 inch color LCD touch screen | |
| Storage mode | 199 sets of historical data can be stored for easy query; | |
| Results output | at the same time can be equipped with U disk output function, output to the PC for long-term storage | |
| Data extension | laser printer interface, can be linked to HP1108 laser printer (optional). | |
| Output format | the output format of the result USB flash disk is CSV or EXCEL. | |
| Remote upgrade | with TCP network transmission function, can be later software remote upgrade(optional). | |
Packing list of automatic Cloud point meter
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | set | |
| 2 | Cloud point glass test tube | 2 | set | Including inner tube and outer tube |
| 3 | Cloud point sensor | 2 | piece | |
| 4 | power cord | 1 | piece | |
| 5 | Fuse tube | 1 | piece | |
| 6 | instruction manual | 1 | copy | |
| 7 | Packing list | 1 | copy | |
| 8 | Certificate warranty card | 1 | copy |
