| Brand Name: | Shengtai Instrument |
| Model Number: | SH115B |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 10000sets/year |

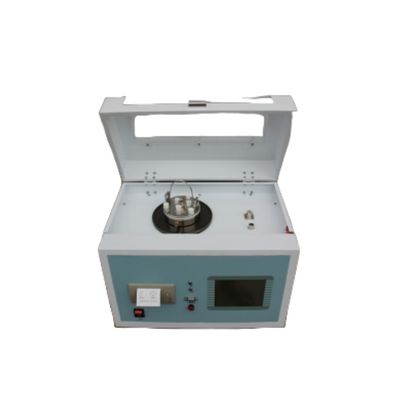

SH115B insulating oil dielectric loss and resistivity tester is used for insulating oil and other liquid insulating medium dielectric loss Angle and volume resistivity test of the integrated structure of high precision instrument. IEC 60247/ ASTM D924
Internal integrated dielectric loss oil cup, temperature controller, temperature sensor, dielectric loss test bridge, AC test power supply, standard capacitor, high resistance meter, DC high voltage source and other main components.
The heating part adopts the most advanced high frequency induction heating method. The heating method has the advantages of non-contact between oil cup and heating body, uniform heating, fast speed and convenient control.
The AC test power supply adopts AC-DC-AC conversion mode, which effectively avoids the influence of voltage and frequency fluctuation of mains power on the accuracy of dielectric loss test. Even if the generator is generating electricity, the instrument can also run correctly.
The instrument adopts full digital technology, all intelligent automatic measurement, a variety of mode measurement, equipped with a large screen (320×240) touch display, full Chinese menu, each step has Chinese prompts, test results can be printed out, the operator does not need professional training can be skilled in use.
Insulating Oil Dielectric Loss and Resistivity Tester Tp-6100A (Automatic-Cleaning)
Transformer Insulating Oil Tan Delta Tester Electrical Resistivity Meter Insulation Oil Tester Transformer Oil Dielectric Loss Test Equipment
ASTM D 924 Insulating Oil Measuring tester
Dielectric Loss Angle and Resistivity Tester
Oil Dielectric Loss Tester Oil Resistivity And Dielectric Loss Tester
Technical parameters
| 1 | Conditions of use | -15℃∽40℃ RH＜80% | |
| 2 | Electrical source | AC 220V±10% Unrestricted frequency | |
| 3 | AC high voltage output | 400V∽2200V ±2% every100V 50VA | |
| 4 | DC high voltage output | 200V∽600V ±2% | |
| 5 | Temperature controlled induction furnace | The most powerful500W | |
| 6 | Temperature control range | <100℃ | |
| 7 | Temperature control error | ±0.5℃ | |
| 8 | Resolution of temperature measurement | 0.1℃ | |
| 9 | Temperature control of time | At room temperature to90℃ Less than20min | |
| 10 | Measuring range |
tgδ C x R |
Unlimited 15PF-300PF 10M-10T |
| 11 | resolution |
△ tgδ: △ Cx : △ Rx : |
0.001% 0.01pF 0.01 |
| 12 | Fine degree |
△ tgδ: △ Cx : △ Rx : |
±(reading*0.5%+0.040%) ±(reading*0.5%+0.5PF) ±reading * 10% |
| 13 | Relative dielectric constant | εr | According to the Cx Automatic calculation with the same precision Cx |
| 14 | Volume resistivity | ρ | According to the Rx Automatic calculation with the same precision Rx |
| 15 | Overall dimensions | 450(L)×310(W)×360(H) | |
| 16 | Heavy volume | 18Kg | |
Equipment list
1 instrument host machine
2 oil cups 1
3 special test temperature sensing wire (white/short/ends) 1
4. One dedicated data acquisition wire (black/short/terminal connection)
1 special 2KV high voltage test wire (black/long/clamp at both ends) for inspection
1 special test wire (black/long/one end clamp/one end connector) for inspection
6 Special measuring cup (50ml)1
7AC220V power cord 1
8 One copy of operation manual
1 copy of factory inspection report/certificate
10 safety tube, printing paper for reserve
Packing list of insulating oil dielectric loss resistivity meter
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Instrument host | 1 | set | |
| 2 |
Oil cup
|
1 | piece | |
| 3 | Test temperature sensing wire | 1 | piece | |
| 4 | Data acquisition line | 1 | piece | |
| 5 | Inspect 2KV high-voltage test line | 1 | piece | |
| 6 | Send to test line | 1 | piece | Black/long/clip at one end/connector at one end |
| 7 | Measuring cup | 1 | piece | 50ml |
| 8 | power cord | 1 | piece | |
| 9 | instructions | 1 | copy | |
| 10 | Packing list | 1 | copy | |
| 11 | Certificate warranty card | 1 | copy |
