| Brand Name: | Shengtai Instrument |
| Model Number: | SH125A |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 100000sets/year |

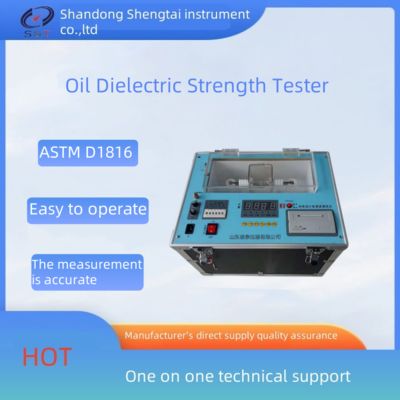

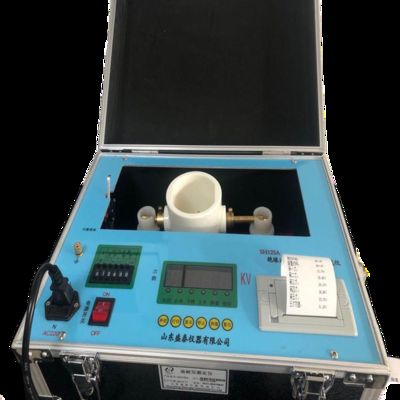

SH125A Oil Dielectric Strength Tester is immersion oil electric performance is one of the routine test, high voltage electrical equipment according to the ministry of the revised provisions in the power coefficient test method for oil, insulating oil dielectric strength tester is developed, the product is dry type aluminum alloy shell with light weight, easy to carry, applicable to power coefficient and users in the field use, this product compared with similar products, has the advantages of simple operation, high efficiency and measurement accuracy, is the ideal testing instrument test personnel.
ASTM D1816 Insulating Oil Breakdown Transformer Oil Withstand Voltage Tester
Insulating Oil Transformer Oil Withstand Voltage Tester
Second, technical performance
1. Power supply voltage: 220V/ 50HZ
2. Equipment capacity: 0.5KVA
3, input voltage: 200V/ 50HZ
4, the output test voltage: 0-80KV
5, voltmeter indicating error: ±5%
6, boost speed: 2KV/ s + 20%
Transformer Oil BDV Tester
Technique parameters
| Power | AC220V±10%,50Hz | |
| Output test voltage | 0-80KV | |
| Equipment capacit | 0.5KVA, Booster capacity 1.5 kVA | |
| Limiting current | 5mA | |
| Input voltage | 200V/ 50HZ | |
| Boost speed | 2KV/ s + 20% | |
| Error | ±5% | |
| Scheduled setting | times 1-9 | |
| Quiet time | 0-10 minutes and 39 seconds | |
| Mixing time | 0-1 min 39 s | |
| Service conditions | Temperature | 10ºC~35ºC |
| Humidity | ≤75% | |
| Oil cup clearance | 2.5mm (oil cup feeler gauge diameter) | |
| Measurement accuracy | 1% | |
| Arcing time | no more than 20ms | |
| Boost speed | 2.0kV/s, 2.5kV/s, 3.0kV/s, 3.5kV/s | |
| Package size: 48 * 45 * 38cm weight: 25kg | ||
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 |
Host
|
1 | set | |
| 2 | Special oil cup | set | ||
| 3 | power cord | 1 | copy | |
| 4 | instruction manual | 1 | copy | |
| 5 | Packing list | 1 | copy | |
| 6 | Certificate warranty card | 1 | copy |
