| Brand Name: | Shengtai Instrument |
| Model Number: | SH0085B |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 100000sets/year |

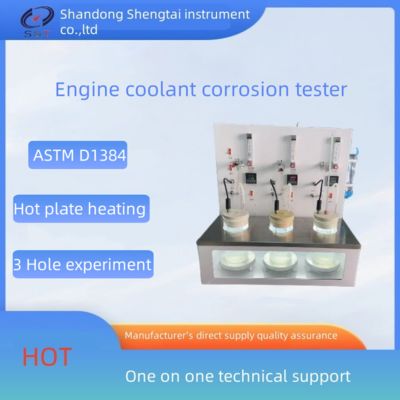

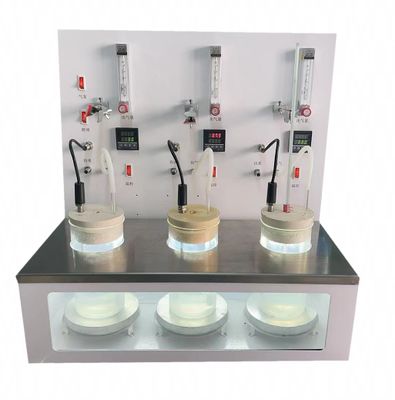

SH0085B Engine coolant antifreeze corrosion apparatus is according to the law of the People's Republic of China petroleum and chemical industry standard ASTM D1384 the engine cooling fluid corrosion measurement the requirements of the design and manufacture, suitable for according to the ASTM D1384 standard measurement method, the determination of high boiling point and low boiling point engine coolant and concentrate on the extent of the typical specimens of metal corrosion, SH0085 corrosion tester upgraded instruments bring silent air compressor, no need to manually equipped with air.
ASTM D1384 Engine Coolant Corrosion Tester
ASTM D1384 Antifreeze Coolant Corrosion Tester
Engine Coolant Corrosiveness Tester
Coolant Corrosion Testing Equipment ASTM D1384
ASTM D1384 Engine Oil Tester for Coolant Oil
Main technical specifications
● Heating method: Metal bath heating
● Timing: display timer;
● Total power: 2.5kW;
● Observation situation: Transparent can observe the experimental state
● Flow rate(adjusted by flow meter): 100ml/min+/-10ml/min;
● Sand core glass gas diffusion head
● Can operate three groups of experiment at the same time
● Baking cup: made of heat-resistant glass.
● High-type nozzle-less 1000ml, in line with the requirements of ASTM D1384 standard.
● gas diffusion tube: the diffusion head is made of sand core glass, and the pipe diameter is made of heat-resistant glass.
● reflux condensing pipe: water cooling type, sleeve length is not less than 400mm.
Technical parameters
| No. | Tech Indicator | Description |
| 1 | Power | AC220V±10% 50Hz |
| 2 | the power consumption of the whole machine |
not more than 2000W.
|
| 3 | Temperature Control Range | room temperature ~+100℃ ±0.1℃ |
| 4 | Constant Temperature Precision | ±0.2℃ |
| 5 | Ambient temperature | -10℃~+35℃. |
| 6 | Relative humidity | ≤85%. |
| 7 | air flow meter | flow range of 30~300ml/min |
| 8 | timer | timing range 0~ 9999h |
| 9 | Package size: 580 * 490 * 620mm Weight: 34kg | |
| 10 | Instrument size: 530 * 420 * 520mm Weight: 28kg | |
Sample size and material:
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | set | |
| 2 | power cord | 1 | piece | |
| 3 | Corrosion test piece | 3 | set | |
| 4 | Condenser tube | 3 | set | |
| 5 | Gas diffusion tube | 3 | set | |
| 6 | Fuse tube | 1 | piece | |
| 7 | instruction manual | 1 | copy | |
| 8 | Certificate warranty card | 1 | copy |
