| Brand Name: | Shengtai Instrument |
| Model Number: | SH387 |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 100000sets/year |

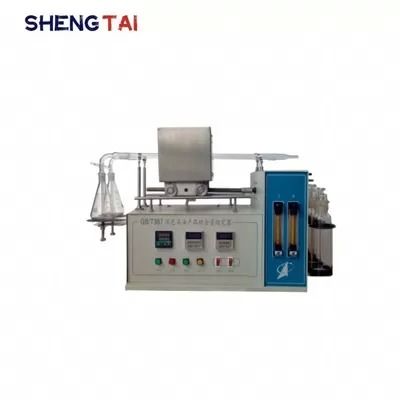

SH387 Dark petroleum sulfur content tester (tubular furnace method) is according to the national standard GB/T387 "determination of sulfur content of petroleum products" (tubular furnace method) requirements, for the production of petroleum and its products, scientific research and other industries design and manufacture.
Petroleum Sulfur Measuring Instrument
New Sulfur Content Measuring Instrument for Fuels
GB/T387Petroleum Oils Sulfur Content Tester/Sulphur Analytical Instrument
It has the characteristics of small shape, reasonable design, using single-chip computer program control and high degree of automation.
It is suitable for the determination of sulfur content in petroleum products such as lubricating oil, crude oil, coke and residue.
The instrument is mainly composed of horizontal tubular electric furnace system, digital display temperature control system, motor drive control system, air purification flow regulation system, etc.
The electric furnace is heated by the electric furnace wire, and the operation of the servo motor is automatically controlled by the single chip microcomputer, and it has the functions of manual fast forward, fast retreat, measurement and stop.
Two quartz tubes with straight grinding tube installed in parallel can test two samples at the same time, and two results can be made in parallel at one time.
Three gas washing cylinders are used to purify the air. If the sulfur content in the air of the laboratory often changes, the U-shaped pipe with activated carbon can be connected in series in the air supply loop. The air pump and the air flow regulating system can adjust the air flow required by the test.
Thermocouple located in the center of the furnace can accurately measure the heating temperature of the furnace and control the temperature automatically.
Main technical parameters
1, power supply: 220V±10% 50Hz
2. Heating power of electric furnace: 1600W
3. Control temperature: 900 ~ 950℃
4. Electric furnace stroke: 130mm
5, flow meter: 60 ~ 600 ml/min air flow meter test flow: 500ml/min
6, travel time: 25 ~ 65 min, can be arbitrarily selected
7, thermocouple: dividing number K
8, ambient temperature: room temperature of about 25℃
9, r elative humidity: < 85%
| Model | SH387 Dark petroleum sulfur content tester |
| Temperature range | 900 ~ 950 ºC |
| Temperature accuracy | ± 1 ºC |
| Heating power |
1600W
|
| Electric stroke |
130mm
|
| Travel time | 25 ~ 65 min, can be arbitrarily selected |
| flow meter | 60 ~ 600 ml/min |
| Thermocouple | dividing number K |
| Ambient temperature | room temperature of about 25℃ |
| Instruments Material | imported brushed stainless steel |
| Power supply |
AC220V ± 10% 50Hz
|
| Instrument size: 900 mm × 350㎜ × 450㎜ weight: 25kg | |
Packing list
| S/N | Name | Unit | Quantity | Remarks |
| 1 | Determinator | set | 1 | |
| 2 | Gas cylinder washing | set | 3 | Straight tube type |
| 3 | Receiving bottle, 250mL | piece | 2 | Triangular flask |
| 4 | Quartz elbow | piece | 2 | |
| 5 | Small quartz tube | piece | 2 | |
| 6 | Porcelain boat | piece | 4 | |
| 7 | Quartz boat moving hook | piece | 1 | |
| 8 | Quartz straight tube | piece | 2 | |
| 9 | Thermocouple | piece | 1 | |
| 10 | Hose | meter | 2 |
