| Brand Name: | Shengtai Instrument |
| Model Number: | SY392 |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 10000sets/year |

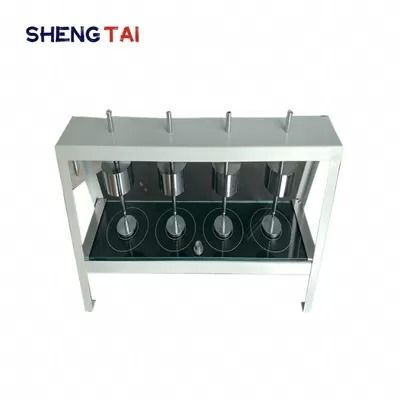

SY392 grease pressure oil separator is designed and manufactured according to the standard GB/T392.
This instrument is to use the pressure oil separator from the grease pressure out, and then determine the amount of oil pressure out.
The required ambient temperature is 15 ~ 25℃.
Technical parameters
1 connecting rod: piston and hammer processing, plus Φ8 steel ball, after strict weighing, the total weight in the standard range (1000g + 10g).
2. The studio temperature is required to be at T =15℃ ~ 25℃.
3. Each 4 connecting rods and heavy hammer device.
Performance characteristics
Four machine, working environment temperature T =15-25℃, weight of 1000g±10g.
Size: 480mm * 180mm * 320mm Weight: 15kg
packing list
| S/N | Name | Unit | Quantity | Remarks |
| 1 | Bracket | set | 1 | |
| 2 | Fat container | piece | 4 | |
| 3 | Piston | piece | 4 | |
| 4 | 8MM steel ball | capsule | 6 | |
| 5 | connecting rod | piece | 4 | |
| 6 | Heavy hammer | piece | 4 | |
| 7 | instructions | copy | 1 | |
| 8 | Packing list | copy | 1 | |
| 9 | Certificate warranty card | copy | 1 |
