| Brand Name: | Shengtai Instrument |
| Model Number: | SY264 |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 100000sets/year |

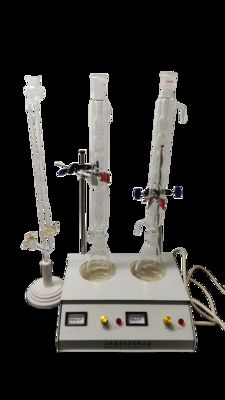

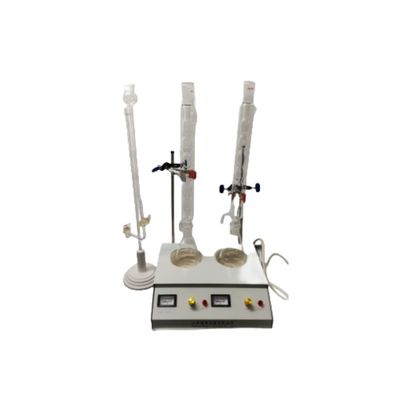

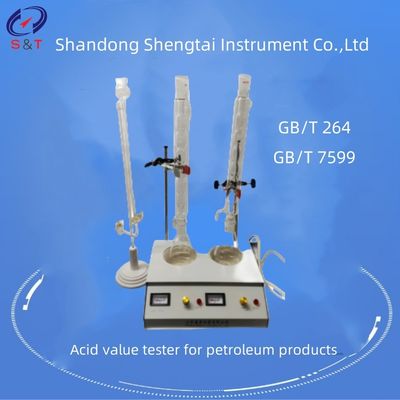

SY264 Acid value acidity meter is designed and manufactured according to the requirements of GB/T264 "Determination of acid value of petroleum products" and GB/T258 "Determination of acidity of gasoline, kerosene and diesel oil" of the People's Republic of China. It is suitable for the determination of acidity of gasoline, kerosene and diesel oil without ethyl liquid and the acid value of petroleum products.
Laboratory equipment Water Soluble Petroleum Products Oil Acid Value Tester
Automatic Acid Number Tester for Petroleum Products /Acid Value Test Kit/Analyzer
Acid Value and Acidity Tester for Petroleum Products
Laboratory Equipment Transformer Oil Petroleum Products Oil Acid Value Tester
This method uses ethanol to extract the acid in the sample and then titrates it with an alkaline solution.
The instrument is also suitable for measuring the acid value of transformer oil and turbine oil in operation according to the requirements stipulated in the standard GB/T7599 "Determination of acid value of transformer oil and turbine oil in operation" of the People's Republic of China.
I. Main technical features
1. The design of the instrument fully conforms to the requirements of GB/ T264 and GB/T258 standards.
2, heating using electric furnace heating, heating power from 100W ~ 1000W stepless adjustable, convenient and reliable.
3, the instrument design is reasonable, simple installation, easy to use.
II. Main technical parameters and indicators
| working power supply | AC220V±10% 50Hz; |
| Electric heater power range | 100W ~ 1000W, stepless adjustable |
| burette accuracy | indexing 0.02ml; |
| Ambient temperature | ≤35℃ |
| relative humidity | ≤ 85%; |
| Power consumption of the whole machine | no more than 1200W. |
| Size: 320mm * 180mm * 450mm Weight: 15kg | |
Packing list
| S/N | Name | Unit | Quantity | Remarks |
| 1 | Host | set | 1 | |
| 2 | Customized special flask | piece | 2 | 250nl |
| 3 | Acid value special condenser tube spherical | piece | 2 | |
| 4 | Special seat buret | set | 1 | 2ml |
| 5 | Instruction | Copy | 1 | |
| 6 | Packing list | copy | 1 | |
| 7 | Certificate warranty card | copy | 1 |
