| Brand Name: | Shengtai Instrument |
| Model Number: | SH709 |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 100000sets/year |

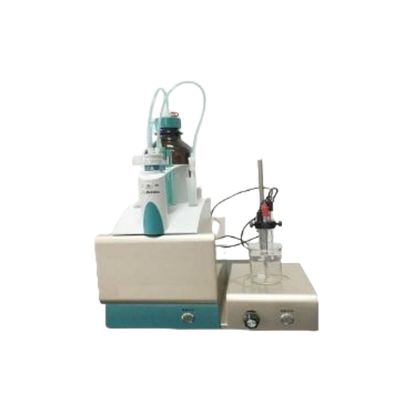

SH709 automatic mercaptan and sulfur tester using potential titration method measurement principle.
The H2S-free sample was dissolved in isopropanol solvent of sodium acetate, and potentiometric titration was carried out with standard solution of silver alcohol nitrate. The pH glass electrode was used as reference electrode, and the mercaptan sulfur electrode was used as indicator electrode. The potentiometric spike between the two electrodes indicated the end point of titration.
The mercaptan sulfur precipitates to silver mercaptan during titration.
SH709 mercaptan and sulfur measuring instrument conforms to GB/T 1792, ASTM D3227 and other standards.
It is suitable for the determination of mercaptan sulfur in jet fuel, gasoline, kerosene and light diesel oil without hydrogen sulfide. The determination of mercaptan sulfur has important significance in the evaluation of odor of jet fuel, gasoline, kerosene and light diesel oil, the adverse effect on rubber parts of fuel system and the corrosion of fuel system.
Mercaptan Sulfur Content (Potentiometric Titration Method)
ASTM D3227 Distillate Fuels Mercaptan Sulfur Tester (Potentiometric Method)
Distillate Fuel Mercaptan Sulfur Analyzer
HK-Dp-LC200 Mercaptan Sulfur Content Titration Tester (Potentiometric Titration Method)
Technical features:
1. Complete set of instruments: host machine, titration unit, computer (including operating software), printer, etc.
2.Windows operating platform, man-machine direct dialogue, convenient operation, with workstation function.
3. It has the function of continuous titration.
4. Real-time display of titration curve, storage and printing of titration curve, results and data.
5. Automatic cleaning, automatic value filling.
6. Automatic identification of the end point, automatic filter out false end point, and can be manually selected to judge the end point.
Technical indicators:
| measurement range | 0.0003% ~ 0.01%(3PPM-100PPM) |
| Precision |
R =0.00007+0.027X1 (X1 is the mean value of the two mecaptan sulfur results repeated determination, % (m/m) |
| potential measurement range | 0 ~ ±1999.5 mV |
| Basic error | 0.1% ± 0.5mV |
| Relative error | ≤5% |
| Burette accuracy | ±0.1%FS |
| Burette volume | 10ml |
| Sending accuracy | ≤0.01ml |
| Size: 350 * 280 * 380mm Weight: 18kg | |
Packing list
| S/N | Name | Unit | Quantity | Remarks |
| 1 | Host | set | 1 | |
| 2 | Microcomputer host | set | 1 | User can provide |
| 3 | Keyboard | set | 1 | User can provide |
| 4 | printer | set | 1 | Prepared by user |
| 5 | A magnetic stirrer | set | 1 | |
| 6 | Serial communication line | piece | 1 | |
| 7 | Print cable | piece | 1 | User can provide |
| 8 | Short circuit plug | piece | 1 | |
| 9 | Fuse (1.5A) | piece | 2 | In the host power socket |
| 10 | Mercaptan sulfur electrode | piece | 1 | Specially made by our factory |
| 11 | Magnetic stirrer | piece | 1 | |
| 12 | power cord | piece | 1 | |
| 13 | an instruction manual | copy | 1 | |
| 14 | Packing list | copy | 1 | |
| 15 | certificate | copy | 1 |
