| Brand Name: | Shengtai Instrument |
| Model Number: | SH0699 |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 100000sets/year |

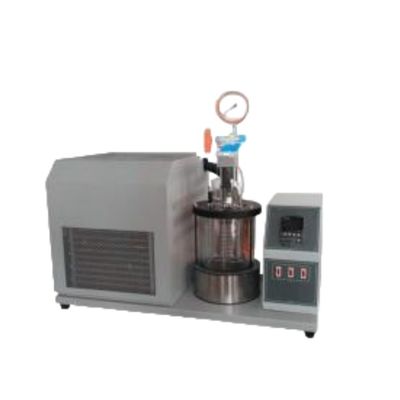

SH0699 refrigerant oil and refrigerant solubility tester is designed and manufactured according to the national petrochemical industry standard SH/T0699 refrigerant oil and refrigerant solubility, refrigerant oil compatibility.
It is applicable to the compatibility, compatibility and inter solubility of refrigerating oil and refrigerant
Instrument features: digital tube display temperature, the use of imported PT100 temperature sensor, equipped with a special glass thermometer;
Equipped with special pressure gauge, vacuum pump pumping, needle valve adjustment, vacuum pressure gauge display instrument is equipped with a safety valve, to ensure the safety of the sample two-phase separation curve, and ensure that the working pressure is 1.5Mpa.
The pressure resistant hose is connected with the transparent tube to protect the cylinder, and it is convenient to observe the special refrigerant collecting pipeline.
Optional quantitative fluoridation device.
Technical parameters
| working power supply |
AC220V±10%;50 hz.
|
| working cold tank | double vacuum glass bath |
| cold tank temperature control | +30℃ ~ -70℃. |
| temperature control accuracy | ±0.5℃. |
| Refrigeration system | imported overlapping refrigeration compressor. |
| Cooling bath container |
Dewar bottle.
|
| relative humidity | ≤85% |
| Power consumption of the whole machine |
about 1500W.
|
| Size: 720 * 450 * 620mm weight: 72kg | |
1, working power supply: AC220V±10%;50 hz.
2, working cold tank: double vacuum glass bath.
3, cold tank temperature control: +30℃ ~ -70℃.
4, temperature control accuracy: ±0.5℃.
5, Refrigeration system: imported overlapping refrigeration compressor.
6. Cooling bath container: Dewar bottle.
7, relative humidity: ≤85%
8. Power consumption of the whole machine: about 1500W.
9.Size: 720 * 450 * 620mm weight: 72kg
Packing list
| S/N | Name | Unit | Quantity | Remarks |
| 1 | Engine coolant compatibility tester | set | 1 | |
| 2 | Test tube and protective tube | set | 1 | |
| 3 | Pressure hose | piece | 1 | |
| 4 | thermometer | piece | 1 | |
| 5 | PT100 sensor | piece | 1 | |
| 6 | Power cable(220V 6A) | piece | 1 | |
| 7 | Instruction | copy | 1 | |
| 8 | Packinglist | copy | 1 | |
| 9 | Certificate warranty card | copy | 1 |
