| Brand Name: | Shengtai Instrument |
| Model Number: | SH102C |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 10000 sets/year |

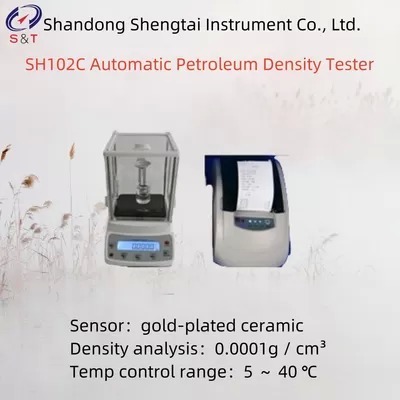

SH102C Automatic Petroleum Density Tester adopts Archimedes' principle to automatically measure the density of petroleum products. It is suitable for determining the density of petroleum products, chemical solutions, modern energy, petroleum fuels, and fine chemicals. Automatically display density value and API degree.
Functional characteristics and devices:
· Gold-plated ceramic capacitive sensor;
· Standard RS232 data output function, can be connected to the printer to print automatically. ;
· Full automatic zero tracking, buzzer alarm, overload alarm function
· Blue backlight LCD display;
Constant temperature 20 degrees or 25 degrees
· Measurement time about 10 seconds
· API ° and specific gravity show a nonlinear inverse relationship. Liquids with a high specific gravity will exhibit low API ° and vice versa.
· According to API ° reading, the number of barrels per metric ton of crude oil can be obtained.
· There is a linear relationship between specific gravity and w / gal concentration. Can be converted by E1 and E2.
· According to the API ° reading, the crude oil is divided into: light crude oil> 31.1 API °, medium oil between 22.3 API ° ~ 31.1 API °, heavy oil <22.3 ° API °, super heavy crude oil <10.0 API °
Technical Parameters:
Density analysis: 0.0001g / cm3
Measuring time about 10 seconds
Direct reading; specific gravity, concentration
Temperature control range: 5 ～ 40 ℃
Sensor; gold-plated ceramic
Test types: specific gravity S.G, API °, barrels per metric ton, w / gal concentration
Standard interface: RS-232
API ° accuracy: 0 ~ 100 API °
w / gal concentration accuracy: 0.1% ~ 100.0%
Standard; printer
Weight; (gross weight) 7.5kg
