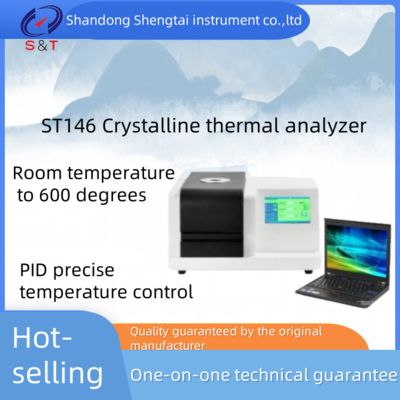

ST146 High Sensitivity Pharmaceutical Testing Instruments Crystalline Thermal Analyzer with Customizable Gas Flow

ST146 High Sensitivity Pharmaceutical Testing Instruments Crystalline Thermal Analyzer with Customizable Gas Flow

The ST146 Crystalline Thermal Analyzer is designed and manufactured in accordance with the new version of the 2020 Chinese Pharmacopoeia General Rules 0981 Crystalline Inspection Method and 0661 Differential Scanning Calorimetry Method. It is a touch screen type and can perform tests such as glass transition temperature, phase transition, melting and enthalpy values, product stability, curing, specific heat, and oxidation induction period.

Technical parameters and characteristics

• Temperature range: room temperature~600 ℃
• Temperature sensitivity: 0.001 ℃
• Temperature fluctuation: ± 0.01 ℃
• Temperature repeatability: ± 0.1 ℃
• Heating rate: 0.1~100 ℃/min
• Data scanning: heating scan, cooling scan, constant temperature scan
• Temperature control method: PID precise control (fully automatic program control); The lower computer interface can set and define PID parameter values to meet different environments and power heating needs; Customizable initial heating power;
• DSC range: 0~± 600mW
• DSC resolution: 0.01uW
• DSC sensitivity: 0.001mW
• Working power supply: AC220V/50Hz or customized
• Atmosphere control gas: nitrogen, oxygen (instrument automatically switches)
• Gas flow rate: 0-300mL/min;
• Display method: 24 bit color, 7-inch LCD touch screen display
• Parameter standard: equipped with standard substance (tin), users can calibrate the temperature themselves
• Software: With specific heat capacity testing function, including specific heat capacity testing standard samples; The software can simultaneously set 6 experimental parameters;
• The software comes with automatic analysis function, data can be generated in Excel format, and experiments can be saved as PDF reports
• An industrial grade 7-inch touch screen with rich display information.
• New metal furnace body structure, better baseline and higher accuracy. Heating adopts an indirect conduction method, which has high uniformity and stability, reduces pulse radiation, and is superior to traditional heating modes.
• USB communication interface, strong universality, reliable and uninterrupted communication, supporting self recovery connection function.

★ Data extension: Account layering and audit tracking function (optional)

Note: Gas self provided

Packing list
