| Brand Name: | Shengtai Instrument |
| Model Number: | ST103 |
| MOQ: | 1 carton |
| Payment Terms: | T/T |
| Supply Ability: | 10 cartons per week |

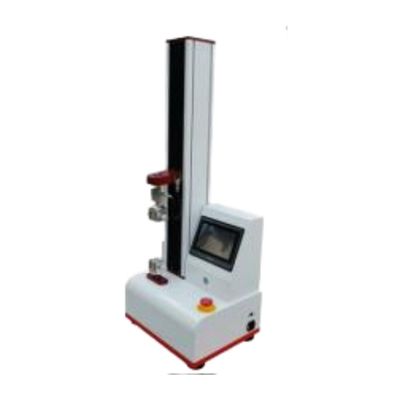

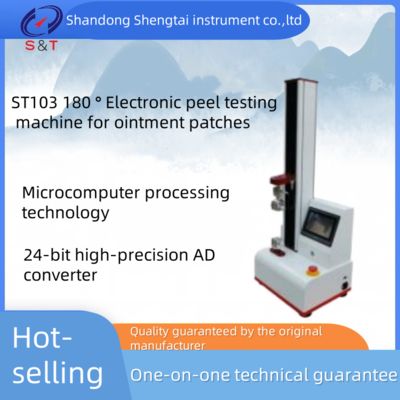

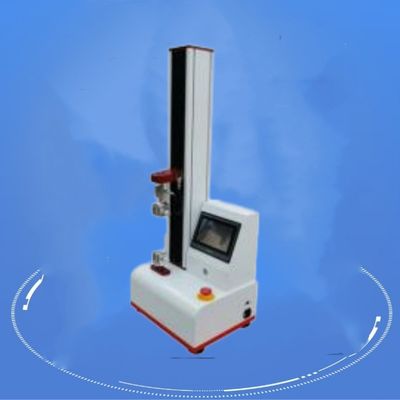

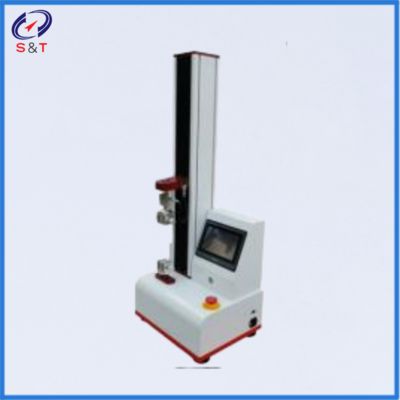

ST103 ointment 180 degree electronic peel test machine for Pharmaceutical Testing Instruments with precise control and low noise
The ST103 ointment 180 ° electronic peel test machine is designed strictly in accordance with the requirements of the new 2020 Chinese Pharmacopoeia "0952 Adhesion Force Determination Method". It adopts modern mechanical design concepts and ergonomic design principles, and uses advanced microcomputer processing technology for careful and reasonable design. It is a new generation of testing machine with novel design, convenient use, excellent performance, and beautiful appearance
Principle:
The sample is clamped between the two clamps of the fixture, and the two clamps move relative to each other. The force and displacement changes during the test process are collected through the force sensor located on the moving clamp and the built-in displacement sensor of the machine, and the 180 degree peel strength of the sample is calculated.
Product features
l The instrument adopts high-precision ball screw, which drives smoothly and accurately; Adopting imported servo motors, with low noise and precise control
l Large screen touch screen display and Chinese menu. Real time display of force time, force deformation, force displacement, etc. during the experiment; The instrument has strong data display, analysis, and management capabilities.
l Adopting a 24 bit high-precision AD converter (resolution up to 1/10000000) and high-precision weighing sensors, ensuring the fast and accurate collection of instrument force data
l Adopting a modular all-in-one printer, it is easy to install and has low malfunctions; Thermal printer.
l Direct measurement results: After completing a set of experiments, it is convenient to directly display the measurement results and print statistical reports, including mean, standard deviation, and coefficient of variation.
l High degree of automation: The instrument design adopts advanced domestic and foreign devices, with microcomputers for information sensing, data processing, and action control. It has the characteristics of automatic reset, data memory, overload protection, and fault self diagnosis.
Product parameters
l Specification: 100N or 500N
l Accuracy: better than level 0.5
l Deformation resolution: 0.001mm
l Test speed: 1-500mm/min stepless speed regulation
l Travel: 400mm
l Boundary dimensions: 500mm (L) x 300mm (W) x 1150mm (H)
l Power supply: AC220V, 50HZ
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Electronic peel testing machine | 1 | set | |
| 2 | Special 180 ° peel off fixture | 1 | piece | |
| 3 | Standard pressure roller | 1 | piece | |
| 4 | Stainless steel peel test plate | 1 | piece | |
| 5 | Printing paper | 4 | roll | |
| 6 | Power cord | 1 | piece | |
| 7 | Certificate of conformity warranty card | 1 | copy | |
| 8 | Instructions | 1 | copy |
