| Brand Name: | Shengtai Instrument |
| Model Number: | ST203C |
| MOQ: | 1 carton |
| Payment Terms: | T/T |
| Supply Ability: | 10 cartons per week |

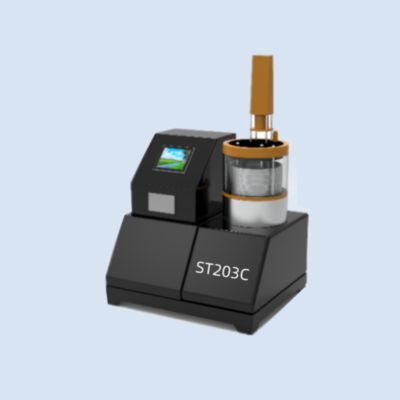

ST203C Automatic Congealing Temperature Tester for Pharmaceutical Testing Instruments with Test Result Storage and Viewing
ST203C automatic congealing temperature tester is designed and manufactured according to the general rule 0613 of The Chinese Pharmacopoeia in 2020 and USP41 651 congealing temperature.
Suitable for determination of the congealing temperature of medicine.
The maximum temperature at which a drug stays unchanged in a short period of time when it condenses from a liquid to a solid is determined.
Some drugs have certain condensation point, purity change, condensation point also changed.
The determination coagulate point may distinguish or examine the pure impurity degree of the medicine.
For example: polyethylene glycol glacial acetic acid phenol stearate magnesium bisphenol A and so on.
Polyethylene glycol congealing temperature tester/Freezing point tester
glacial acetic acid congealing temperature tester/Freezing point tester
Phenol congealing temperature tester/Freezing point tester
Chlorophenol congealing temperature tester/Freezing point tester
stearic acid congealing temperature tester/Freezing point tester
magnesium stearate congealing temperature tester/Freezing point tester
dibutyl hydroxytoluene congealing temperature tester/Freezing point tester
bisphenol A congealing temperature tester/Freezing point tester
Instrument features:
1. Adopt embedded system design, automatic detection and automatic printing in the whole test process
2. The test results can be exported through the U disk;
3. 7-inch color touch screen;The test results can be stored;You can view the historical data;
4. Printing results on the instrument and mechanical automatic mixing.
5. Date password setting function.
Technical parameters
| Display | 7-inch color touch screen |
| Output | exported through the U disk |
| Working cold bath | double-layer vacuum glass bath. |
| Standard | rule 0613 of The Chinese Pharmacopoeia in 2020 and USP41 651 congealing temperature. |
| Cold tank temperature control | -10 ℃ ~ +170℃ |
| Sample agitation | synchronous deceleration motor, 60 times/min. |
| Power supply | AC220V±10%; 50 hz. |
| Ambient temperature | ≤30℃. |
| Relative humidity | ≤85% |
| Power consumption of the whole machine |
no more than 2000W.
|
| Temperature control accuracy | ±0.1℃ |
| Bath liquid stirring | Automatic stirring by stirring motor, 6W power, 1200r/min. |
| Refrigeration system | new type refrigeration compressor |
| Typing | Chinese or English character printing |
| Printer | Micro needle printer |
| Curve display | Display the trend chart of temperature time curve |
| Result output | At the same time can be equipped with U disk output function, output to the computer end for long-term storage |
| Data memory | The memory of microcomputer instrument can be expanded to 16 gigabytes. |
| Data management | Connect to LIMIS system(optional) |
| Refrigeration mode | compressor refrigeration |
| Cooling method | air cooling |
| Typing | 20 columns Chinese characters dot matrix printing |
| Display | 128×64 Chinese characters display |
| Data extension | Laser printer interface, link to HP1108 laser printer (optional) |
| Storage mode |
Experimental results can be stored in 199 groups of historical data for easy query;
|
| Output format | The output format of the usb flash disk is CSV or Excel. |
| Data protection | With date password setting function. |
| Standard printing | Standard printing with automatic measurement and thermal sensitivity of micro printer |
| Remote upgrade | With TCP network transmission function, software remote upgrade can be carried out later |
| account management | audit tracking function and account hierarchical management, level 3 account management (optional). |
| input extension | scan code input sample information (optional) |
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | set | |
| 2 | Gel stopper | 2 | piece | Conforming to pharmacopoeia |
| 3 | Freezing point test tube | 2 | piece | |
| 4 | sensor | 2 | piece | |
| 5 | power cord | 1 | piece | |
| 6 | Printing paper | 2 | volumes | Needle printing paper |
| 7 | Certificate warranty card | 1 | copy | |
| 8 | instructions | 1 | copy |
