| Brand Name: | Shengtai Instrument |
| Model Number: | SH0059B |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 100000sets/year |

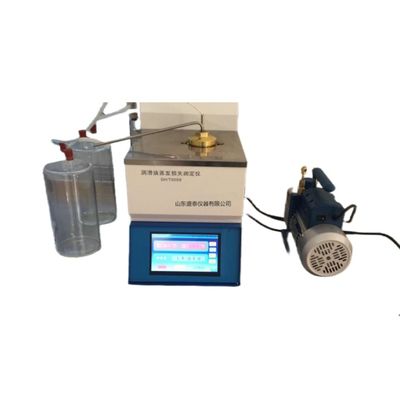

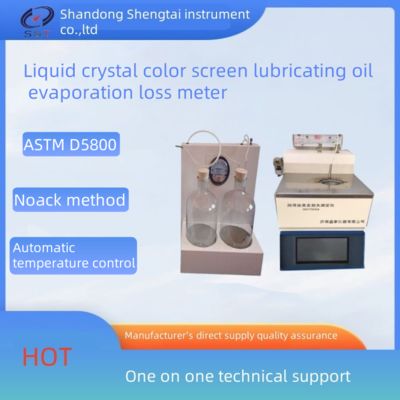

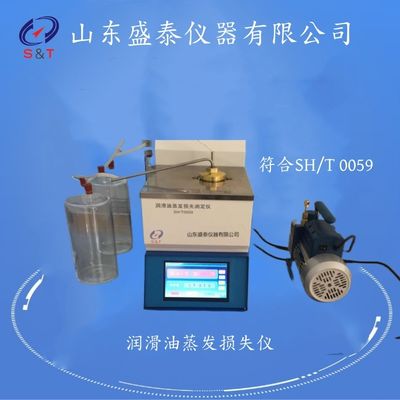

SH0059B liquid crystal color screen lubricating oil evaporation loss meter is developed and produced by our company according to the requirements of Chinese petrochemical industry standard SH/T 0059-1996 "Lubricating oil evaporation loss measurement method (Noak method)".ASTM D5800 DIN51581
It is suitable for lubricating oil and lubricating oil base oil to be heated for 1h under certain conditions, and the evaporated oil is carried out by air.
The evaporation loss of the sample was measured according to the mass difference of the sample before and after heating.
Lubricating Oil Evaporation Loss Tester (NOACK Volatility Test) ASTM D5800
ASTM D5800 Standard Test Method for Evaporation Loss of Lubricating Oils by the Noack Method
ASTM D5800 DIN51581 Lubricating Oil Evaporation Loss Tester Vaporization Losses Analyzer Loss on Heating Equipment
Noack Method Lube Oil Evaporation Loss Meter by ASTM D5800 DIN51581
Performance characteristics
1. Metal bath heating device, safe and environmentally friendly;
Wood alloy is added to the bath body for better heat transfer.
2, imported precision differential pressure gauge, to ensure accurate pressure.
3, Equipped with special vacuum suction system, precision needle valve pressure regulating system, imported needle valve, to ensure accurate flow regulation.
4, Intelligent liquid crystal touch screen, automatic temperature control, input quality, automatic calculation of evaporation loss, storage of calculation results, timing alarm
Technical Parameters
| Working power supply | AC (220±10%) V, 50Hz(customizable) |
| Temperature control mode | Digital display PID temperature control |
| Temperature control range | Normal temperature to 250 °C ± 0.1 °C |
| Heating method | Metal bath heating |
| Pressure regulation | Highly precise needle valve |
| Suction method | Vacuum pump |
| Differential pressure measurement | Differential pressure measurement |
| Appplicable test standard | ASTM D5800, SH/T 0059-2010 |
| Applicable standard | SH/T0059 ASTM D5800 DIN51581 |
| Instrument size: 380 * 360 * 450mm Weight: 28kg | |
Packing list
| S/N | Name | Unit | Quantity | Remarks |
| 1 | Lubricating oil evaporation loss tester | set | 1 | |
| 2 | Evaporation crucible | piece | 1 | |
| 3 | Reamer | piece | 1 | |
| 4 | Small brush | piece | 1 | |
| 5 | Crucible frame | piece | 1 | |
| 6 | Crucible wrench | piece | 1 | |
| 7 | Temperature sensor | piece | 1 | |
| 8 | Suction pipe wrench | piece | 1 | |
| 9 | Wood alloy | g | 50 | |
| 10 | Slag scoop | piece | 1 | |
| 11 | power cord | piece | 1 | |
| 12 | instruction manual | copy | 1 | |
| 13 | Certificate warranty card | copy | 1 |
