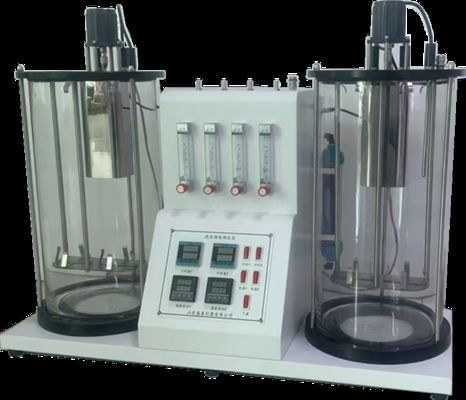

SH126 lubricating oil foam tester conforms to GB/T12579,ASTMD892 method requirements.
It is suitable for testing the foam tendency and foam stability of lubricating oil under the standard conditions.
Foam Testing Equipment Electronic for Lubricating Oils ASTM D892 & GB/T12579 Bubble Tester
The instrument adopts digital PID temperature automatic control system, high temperature control accuracy;
Display using high-definition color touch display, man-machine dialogue intuitive, convenient;
ASTM D892 Lubricating Oil Foam Characterization Analyzer
Transformer oil foam tendency tester ASTM D892
Foaming Characteristics Test Apparatus for The Foaming Characteristics of Lubricating Oils
ASTM D892 Lube Oil Foaming Characteristic Tester
ASTM D892 Foam Tester for Measuring Lubricant's Foaming Tendency and Stability
Automatic timing, air supply, simple test operation, practical.
SH126 Foam Tester is designed and manufactured according to the national standard GB/T12579, which is used to determine the tendency and stability of foam formation of oil products such as fuel oil, lubricating oil, gear oil and hydraulic oil.
Automatic temperature control, automatic timing, air source and gas flow centralized control, reasonable design, beautiful.
| No. | Tech Indicator | Description |
| 1 | Power |
AC220V±10% 50Hz (Can be changed to your country request) |
| 2 | Test cylinder specification: | 1000mL (special cylinder) |
| 3 | Temperature of Baths |
The 24℃±0.5℃ of Low Temperature The93.℃±0.5℃of High Temperature |
| 4 | Accuracy | ±0.5℃ |
| 5 | Stir Motor | 25W |
| 6 | Temperature Range | 0 ~ 99.9℃ |
| 7 | Time System | 0～99.99 Hour |
| 8 | Cooling Device Power | 200W |
| 9 | Flow Meter | 16 ~ 160ml/min |
| Gas diffusion head: | 3000~6000ml/min, at 2.45Kpa | |
| Air source: | self-contained air source, 3L/min | |
| Instrument size: 680 * 380 * 550mm Weight: 35kg | ||
| 10 | Characteristics |
Digital Temperature Display Intelligent Temperature Control Efficient Cooling System High Temperature Bath Low Temperature Bath With Gas Pump Easy to Operation |
Technical parameters:
★ Applicable standard: GB/T12579 ASTMD892
Timing mode: automatic timing, accuracy ±1S
★ Temperature control range: 0℃ ~ 99.9℃
Temperature control accuracy: ±0.5℃
★ Temperature control: low temperature bath: 24±0.5℃ high temperature bath: 93.5±0.5℃
★ Flow control: 16 ~ 160ml/min float flow meter, adjustable
Air source: with air source, 3L/min
★ Gas diffuser: 3000 ~ 6000 ml /min, under 2.45 kPa
Timing device: 0 ~ 99.99 hours
Specifications of test cylinder: 1000mL (special cylinder)
Instrument size: 680 * 380 * 550mm Weight: 35kg
Packing list
| S/N | Name | Quantity | Unit | Remarks |
|
|
Host | 1 | set | |
|
|
Portable refrigeration device | 1 | set | |
|
|
Graduated cylinder | 4 | piece | |
|
|
Foam head | 4 | piece | |
|
|
Graduated cylinder plug | 4 | piece | |
|
|
Rubber tube | 2 | meter | |
|
|
thermometer | 1 | piece | |
|
|
power cord | 1 | piece | |
|
|
Fuse tube | 1 | piece | 10A |
|
|
Instructions | 1 | copy | |
|
|
Packing list
|
1 | copy | |
|
|
Certificate warranty card | 1 | copy |
