| Brand Name: | Shengtai Instrument |
| Model Number: | ST-16N |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 10000 sets/yeear |
Force Resolution 0.01N Gel Strength Tester ST-16N Test Speed 1-1000mm/Minute
ST-16N gel strength meter, as a sensory physical property analysis instrument, is designed and manufactured in strict accordance with the standards.

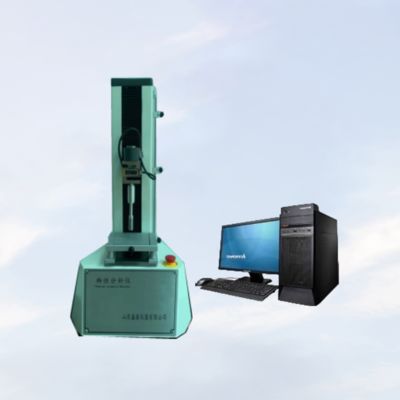

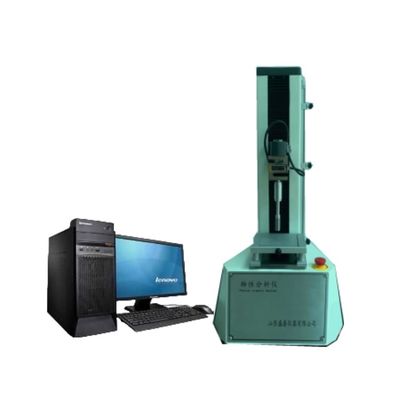

ST-16N surimi gel strength tester mainly includes special software for texture tester host, spare probe and accessories. Its basic structure generally consists of a mechanical device capable of deforming the sample, a container for holding the sample, and a recording system for recording force, time, and deformation rate. The testing revolves around distance, time, and force for testing and result analysis. The physical property analyzer mainly reflects the texture characteristics related to mechanical properties, and its results have high sensitivity and objectivity. The results can be accurately quantified through the equipped specialized software to objectively and comprehensively evaluate the item with quantitative indicators.
National standard "Food additive gelatin" GB6783
National standard "Medicinal Gelatin Hard Capsules" GB13731
Industry standard "Medicinal Gelatin" QB2354
Industry standard "Industrial Gelatin" QB/T1995
Industry standard "Bone Glue" QB/1996
Industry standard "Photographic Gelatin" QB1997
GB/T36187 "Frozen Fish mince"
GB28304 "Ke De Ran Jiao"
Technical features:
• Used for gel elasticity, gel strength and other physical property tests
• The testing process is completed through online software control, etc
• The transmission mechanism adopts ball screws for smooth and accurate transmission; Adopting imported servo motors, with low noise and precise control
• Adopting a 24 bit high-precision AD converter and high-precision force sensing element to ensure the speed and accuracy of instrument force value data acquisition.
• Real time display of force time, force deformation, force displacement, etc. during the experiment
Product parameters
•Force sensing element 2, 5, 10, 20Kg 50kg (20N 50N 100N 200N 500N) Choose any specification
•Force resolution 0.01N
•Deformation resolution 0.01mm
•Test speed 1-1000mm/minute (stepless speed regulation)
•Travel distance 360 mm (increase or decrease as needed)
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | set | |
| 2 | probe | 1 | piece | |
| 3 | Power cord | 1 | piece | |
| 4 | Fuse tube | 1 | piece | 10A in the safety seat |
| 5 | Instructions | 1 | copy | |
| 6 | Certificate warranty card | 1 | copy | |
