| Brand Name: | Shengtai Instrument |
| Model Number: | ST-Z16 |
| MOQ: | 1 |
| Price: | 18286dollar |
| Payment Terms: | T/T |
| Supply Ability: | 10000 sets/year |

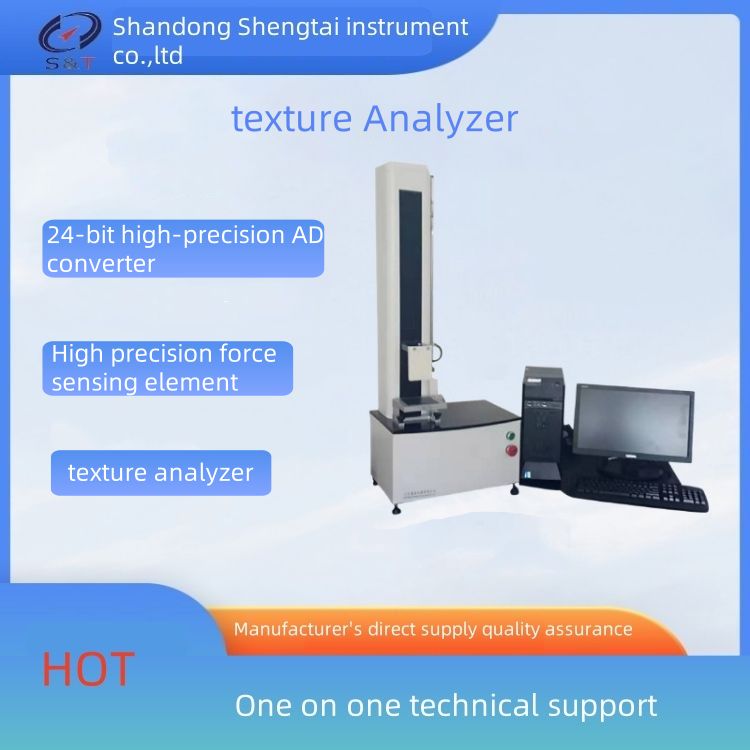

The ST-Z16 texture analyzer (physical property analyzer) is a sensory physical property analysis instrument designed for detecting sample properties in food, biology, pharmaceutical, and chemical industries. It measures characteristics including hardness, elasticity, crispness, chewiness, firmness, ductility, resilience, and gel strength.
| Attribute | Value |
|---|---|
| Force sensing element | 0.5, 1, 2, 5, 10, 20, 30, 50Kg |
| Force resolution | 0.01kg |
| Deformation resolution | 0.01mm |
| Test speed | 1-1000mm/min (stepless speed regulation) 0.016-16.66mm/min |
| Travel distance | 360 mm (Increase or decrease as required) |
| Dimensions | 430 × 480 × 680mm |
| Weight | 28kg |
Hardness: Maximum positive force on the curve during pressing
Consistency: Positive peak area formed by positive force and time
Cohesion: Negative maximum force, simulating internal sample adhesion
Viscosity: Negative peak area formed by negative force and time
| Product Name | Specification |
|---|---|
| Physical property analyzer host | ST-Z16 |
| Special software | Including common TPA mode |
| Special operating platform for food | 1 set |
| Force sensing element | Included |
| Connect converter | Included |
| Cylindrical probe | Included |
