| Brand Name: | Shengtai Instrument |
| Model Number: | SH0325B |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 100000sets/year |

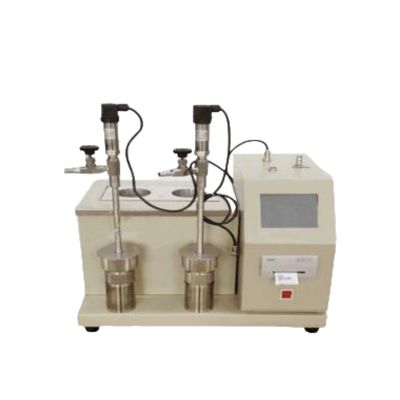

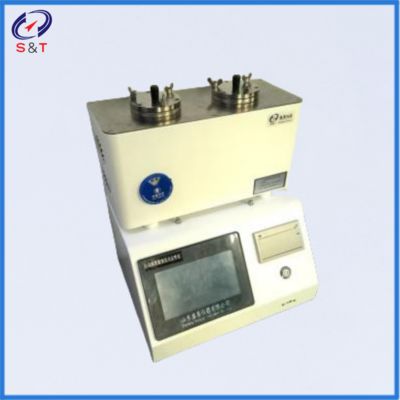

Automatic Oxidation Stability of Lubricating Grease Tester ASTM D942 Grease antioxidation stability Analyzer SH0325B
SH0325B Automatic grease oxidation stability tester in line with SH/T0325 "grease oxidation stability determination method" test method requirements, in line with ASTM D942, suitable for the determination of grease in static storage in the oxygen sealed system of oxidation stability.
It can automatically detect the pressure, record the data, calculate the oxidation time and finish the test automatically.
While displaying the test curves and results on the screen, they are also automatically saved so that the operator can print them as needed
ASTM D942 Automatic Grease Oxidation Stability Tester
Fully Automatic Oxidation Stability Test Instrument
Automatic ASTM D942Oxidation Stability Tester
Technical parameters
1. Power source: AC 220V±10% 50Hz
2. Heating power: 1500W
3. Temperature control point: 99℃
4. Temperature control accuracy: ±0.1℃
5. Operation mode: LCD touch screen
6. Sensor: PT100 (platinum resistance)
7. Bath hole: 2 holes
8. Environmental requirements: temperature 5 ~ 40℃;
Humidity of 85% or less
| Heating power | 1500W |
| Temperature control point |
99℃
|
| Temperature control accuracy |
±0.1℃
|
| Operation mode |
LCD touch screen
|
| Sensor |
PT100 (platinum resistance)
|
| Power supply |
AC220V±10% 50HZ
|
|
Bath hole |
2 holes
|
|
Environmental requirements
|
temperature 5 ~ 40℃; Humidity of 85% or less |
| Instrument size: 380 * 350 * 550mm Weight: 25kg | |
packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | set | |
| 2 | Oxygen bomb | 2 | piece | |
| 3 | Laboratory dish | 10 | piece | |
| 4 | power cord | 1 | piece | |
| 5 | Instructions | 1 | copy | |
| 6 |
Packing list
|
1 | copy | |
| 7 | Certificate warranty card | 1 | copy |
