Insulation Oil Oxidation Stability Tester IEC61125 IEC 474 Petroleum Testing Instruments

Petroleum Testing Instruments Insulation Oil Oxidation Stability Tester IEC61125 IEC 474

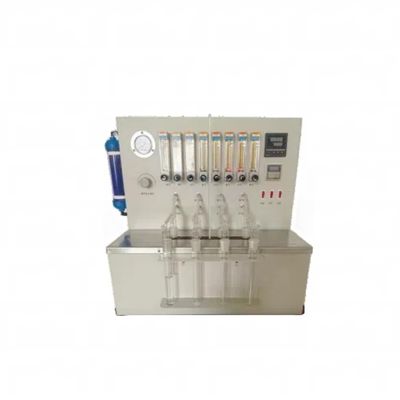

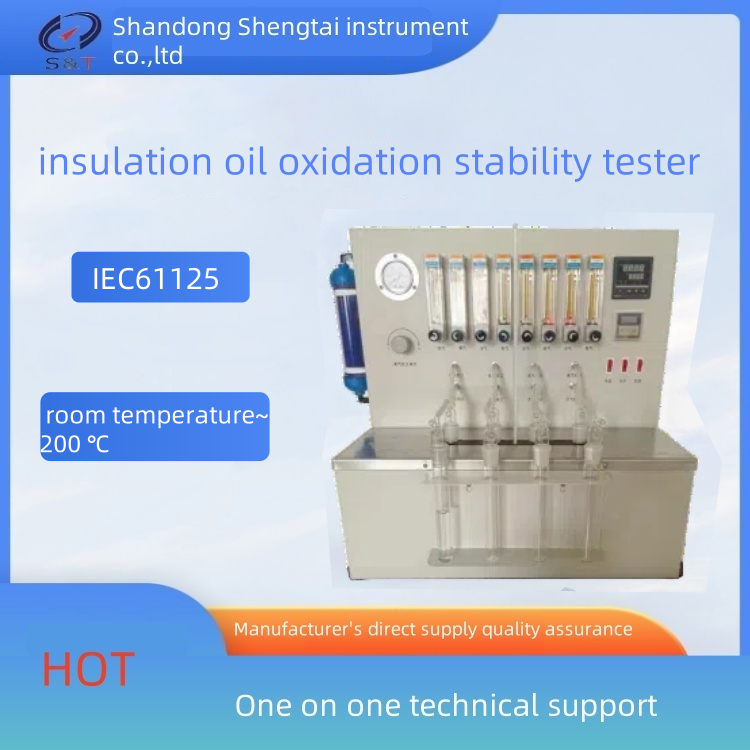

SH12580 insulation oil oxidation stability tester is designed and manufactured in accordance with the requirements specified in the standard NB/SH/T 081-2010 "Determination of oxidation stability of unused hydrocarbon insulation oils" and GB/T12580 "Determination of oxidation stability of mineral insulation oils with inhibitors". It also complies with IEC 474-1974 "Determination of oxidation stability of mineral insulation oils with inhibitors" IEC61125 AMD1-2004

STandard:IEC61125 AMD1-2004 IEC 474

Main technical features

1. This instrument is a desktop structure, and the test tubes are designed and manufactured according to NB/SH/T0811 and GB/T12580 standards

2. The heating device adopts a metal bath heating method, with no odor.

3. Equipped with 4 oxygen flow meters, the specifications meet the requirements of GB/T12580 standard.

4. Simultaneously equipped with 4 air flow meters, the specifications meet the requirements of NB/SH/T0811 standard.

5. Equipped with a digital timer, used to set and record the time of the experiment.

6. Equipped with a dedicated flow meter conversion device, it can convert flow modes

7. Can be used in conjunction with air pumps and purification devices

Main technical parameters and indicators

1. Applicable standard: NB/SH/T0811 GB/T12580.

2. Temperature control method: The digital temperature control meter automatically controls the temperature.

3. Temperature control range: room temperature~200 ℃,

4. Temperature control accuracy: set temperature ± 0.2 ℃.

5. Temperature measuring element: Thermocouple

6. Sample quantity: 4 channels, capable of making 4 samples at the same time
