199 Sets Of Historical Data Can Be Stored For Easy Query
Result Output:
At The Same Time Can Be Equipped With U Disk Output Function, Output To The PC For Long-term Storage
Output Format:
The Output Format Of The Result USB Flash Disk Is CSV Or EXCEL.
Data Extension:
Laser Printer Interface, Can Be Linked To HP1108 Laser Printer (optional).
Remote Upgrade:
With TCP Network Transmission Function, Can Be Later Software Remote Upgrade
Data Protection:
With Date Password Setting Function.
Data Management:
Can Be Connected To LIMIS System
Data Memory:
Microcomputer Instrument Memory Can Be Expanded To 16G
Standard Printing:
Standard Micro Printer Automatic Measurement Automatic Thermal Printing
Packaging Details:
wooden case
Highlight:
SH112G kinematic viscosity tester
,
Fully Auto kinematic viscosity tester
,
ASTM D445 viscosity testing machine
Product Description

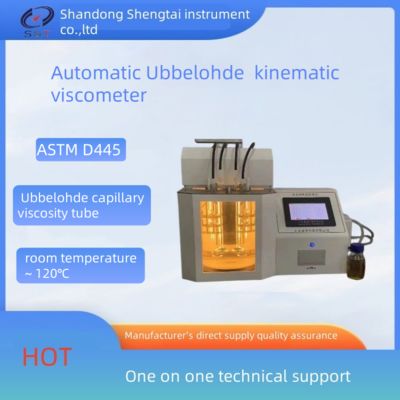

SH112G Fully Auto Kinematic Viscosity Tester For Oil And Polymer Dilute Solutions ASTM D445
SH112G Ubbelohde kinematic viscosity tester is in accordance with GB/T265 and GB/T1632-93 requirements, for oil and polymer dilute solution of kinematic viscosity, viscosity and viscosity of the test equipment, widely used in the pharmacopeia, petroleum, chemical, scientific research, measurement and other departments.
The working process of the instrument includes constant temperature, detection, calculation, viscosity tube cleaning, drying and report sheet printing.
ASTM D445 Automatic Kinematic Viscometer with Glass Capillary
Automatic Viscometer for Testing Kinematic Viscosity of Oil
Intrinsic viscosity tester
Polyethylene and polypropylene dilute solution viscosity tester
Instrument features:
1. The display adopts the original imported 7.0 inch 800×480 pixel real color display;
The keyboard uses a human body sensing touch screen.
Full Chinese operation interface, display delicate intuitive generous, easy to control, touch freely.
2, can store historical data, and equipped with U disk export function.
3. The printer adopts miniature embedded thermal printer, which makes the printing quieter, faster and clearer
4, Temperature measurement and control using the original imported PT100 platinum resistance temperature sensor, high precision AD converter, excellent linear mathematical model, control algorithm, make the temperature measurement and control more fast, accurate and stable.
5, photoelectric detection circuit, detection fast and accurate.
6, black viscometer (specifications to be selected by the user)
Main technical indicators
Rangeroom temperature ~ 100℃;
Temperature control precision±0.1℃
Reproducibility≤ 0.01s Reproducibility: ≤ 0.02s
Basic parametersHeating speed: in line with GB/T265 standard;
Detection methodphotoelectric detection.
Timing range0~9999.9s
Timing accuracy±0.1s
Ubbelohde viscosity measurement range:0.6-1000mm2/s (other ranges can be customized)
Power consumption2000W
Dimensions450*380*550
Instrument weight32kg
Power supplyAC 220V±10%, 50Hz
Storage199 sets of historical data can be stored for easy query;
Result outputat the same time can be equipped with U disk output function, output to the PC for long-term storage
Output formatThe output format of the result USB flash disk is CSV or EXCEL.
Data extensionlaser printer interface, can be linked to HP1108 laser printer (optional).
Remote upgradewith TCP network transmission function, can be later software remote upgrade
Data protectionwith date password setting function.
Data managementcan be connected to LIMIS system
Data memorymicrocomputer instrument memory can be expanded to 16G
Standard printingstandard micro printer automatic measurement automatic thermal printing
Packing list
S/NName Quantity Unit Remarks
1Full-automatic viscosity tester1set
2Electric aspirator1set
3Special viscosity tube 4pieceComply with GB/T11137
