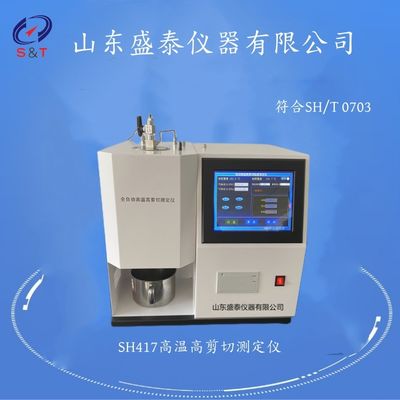

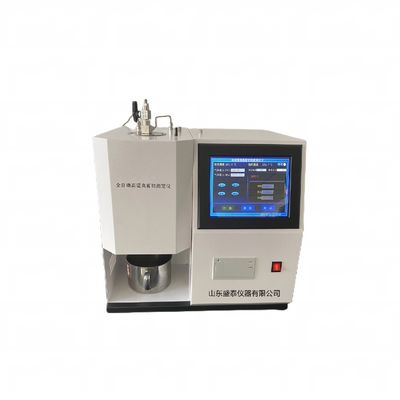

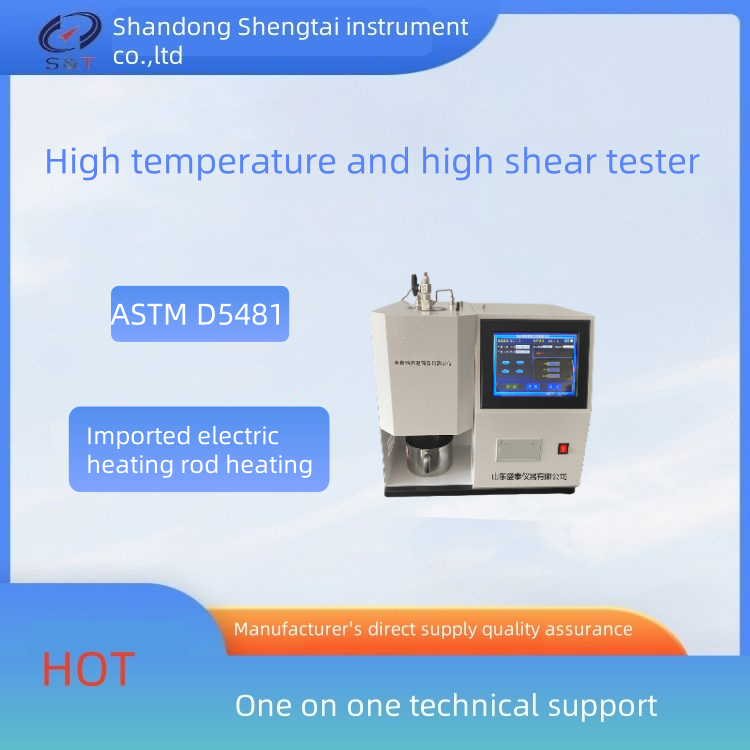

ASTM D5481 High-Temperature High-Shear Hths Lubricating Oil Dynamic Apparent Viscosity Tester
SH417 High Temperature High Shear Tester is in strict accordance with ASTM D5481 with multiple capillary viscometer at high temperature and high shear rate to measure the apparent viscosity of the technical requirements of the standard test method.
It is suitable for measuring the apparent viscosity of lubricating oil at high temperature and high shear rate, that is, the dynamic viscosity of lubricating oil at high temperature and high shear rate, HTHS index.
It is also suitable for measuring the dynamic viscosity of lubricating oil at high temperature and high shear rate and the high temperature and high shear characteristics of lubricating oil according to SHT 0703-2001 apparent viscosity measurement method (multiple capillary viscometer method).
Its testing principle is under the condition of 150 ℃ + 0.1 ℃ test, under the pressure of the nitrogen gas (co2), the outflow from the capillary viscometer, sample by sample flow time and pressure, capillary viscometer apparent shear rate can be obtained as part of the apparent viscosity, with various viscometer pool of calibration curve and the measured pressure corresponding to the oil viscosity.
Automatic High Temperature High Shear Viscosity Tester
High-Temperature High-Shear Dynamic Viscosity Tester
High-Temperature Adhesive Tape Shear Testing Machine
ASTM D5481 High-Temperature High-Shear Tester
ASTM D5481 High-Temperature High-Shear Hths Oil Dynamic Apparent Viscosity Tester
High-Temperature High-Shear Dynamic Viscosity Tester
High-Temperature Adhesive Tape Shear Tester for Lab/Laboratory Equipment
1. The instrument combines the advantages of all kinds of products at home and abroad, and makes a series of improvements in the appearance design and the use function of operating procedures, so that the instrument is more satisfied with the users
2. All the accessories of the instrument are imported original components and processing technology, which can be exchanged with imported instruments
3. The special high shear viscosity microcomputer software makes the test process of the instrument more simple, accurate and convenient
4. The measuring units of the instrument are calibrated with 4 kinds of American Kannen standard oil, and the experimental data are accurate and reliable
5, The instrument is equipped with special pressure reducing valve, convenient for users to connect the cylinder and operation.
6, Glass capillary can be completely replaced with the import, fully meet the ASTM and SH/T standard requirements, diameter 0.15mm, 15-18mm long
8, all aluminum material manufacture, neat and beautiful, small size
9, large touch type LCD screen can display all the test parameters, temperature, flow changes and other information directly
| Applicable standard | ASTM D5481 SH/T0703 |
| Heating method | imported electric heating rod heating |
| he test temperature | normal temperature ~150℃ |
| temperature control accuracy | ±0.1℃ |
| Working unit | 1 unit tube |
| capillary diameter | 0.15mm |
| capillary length | 15-18mm |
| the pressure range | 350KPa -- 3500KPa |
| pressure control accuracy | + 0.1% |
| Sample volume | 7mL |
| environmental requirements | 15℃--30℃, relative humidity 10% to 75%(no condensation), installation class II; |
| operation interface | large touch type LCD screen |
| Data content | Test pressure, test time, sample constant temperature time, test record, test results |
| Calculation of the results | the high temperature and high shear dynamic viscosity calculation software |
| working power supply | AC220V/50HZ |
| working air source |
external nitrogen or carbon dioxide, with pressure reducing valve, the maximum pressure is not less than 3500KPa (500PSI)(self-provided)
|
| Instrument size and weight: 400 * 430 * 850mm Net weight: 35KG | |
Packing list
| S/N | Name | Unit | Quantity | Remarks |
| 1 | Host | Set | 1 | |
| 2 | Pressure relief valve | piece | 1 | |
| 3 | Copper tube | meter | 2 | |
| 4 | Standard oil | bottle | 3 | |
| 5 | Waste oil receiver | piece | 1 | |
| 6 | Filter screen | piece | 1 | |
| 7 | thermometer | piece | 1 | 0~200℃ |
| 8 | Syringe | piece | 1 | All have been installed on the instrument |
| 9 | Viscometer | set | 1 | |
| 10 | Glass capillary | piece | 1 | |
| 11 | Adapter | piece | 1 | |
| 12 | Syringe hose | piece | 1 | |
| 13 | Instructions | copy | 1 | |
| 14 | Certificate warranty card | copy | 1 |
