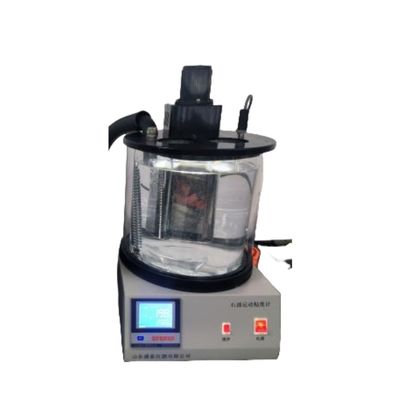

SD265C Uzbek Petroleum Kinematic Viscosity Testing Machine Electric Mixing Device

Design of SD265C Uzbek Petroleum Kinematic Viscometer Electric Mixing Device Integrated Machine

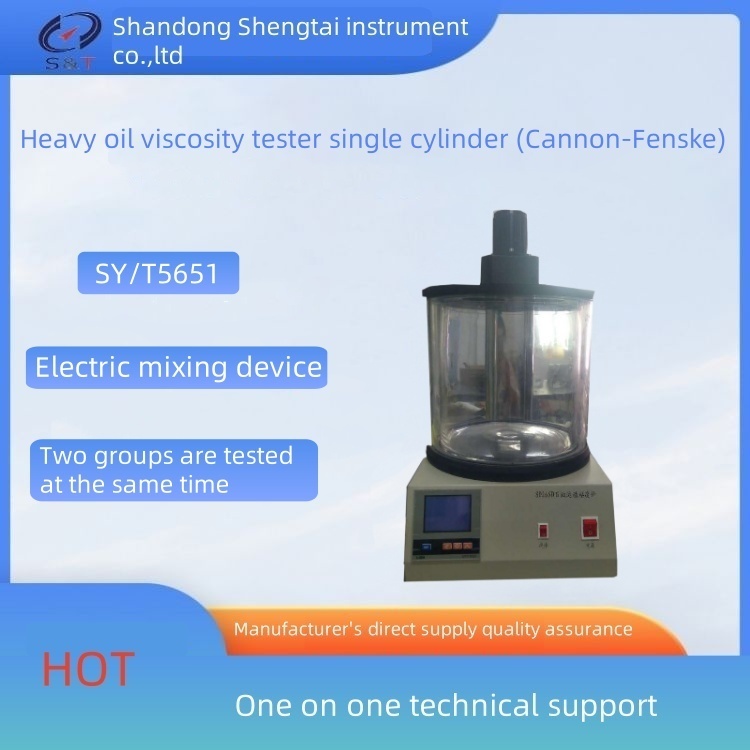

SD265C Heavy oil viscosity tester single cylinder (Cannon-Fenske)

manufacturing in line with the law of the People's Republic of China industry standard SY/T5651 the kinematic viscosity of petroleum products tester technical conditions of specified requirements, applicable to according to the standard of the People's Republic of China GB/T265 the kinematic viscosity of petroleum products determination method and dynamic viscosity calculation method "regulation and GB/T11137 dark kinematic viscosity of petroleum products act, determination of liquid petroleum products (Newton liquid) at a constant temperature under the condition of kinematic viscosity.

SY/T5651 Petroleum Kinematic Viscosity Tester Single Cylinder

Main technical features

1, the use of hard glass cylinder, insulation performance is good, the sample observation is clear.

2. Desktop and all-in-one machine design is adopted, the instrument has good integrity and is convenient to use. 2 groups of experiments can be done simultaneously.

3, the use of electric mixing device, bath temperature uniform

4, display mode using small blue liquid crystal display temperature control stability is good

Main technical parameters and indicators

1.working power supply: AC 220V±10%, 50Hz.

2.heating power: 1800W (temperature control heating).

3 stirring motor: power 6W;The speed of 1200 r/min.

4.temperature range: room temperature ~ 100℃.

5. temperature control accuracy: ±0.1℃.

6. constant temperature bath: inside and outside two layers of cylinder (double cylinder).

7.ambient temperature: -10℃ ~ +35℃.

8.relative humidity: < 85%.

9,.temperature sensor: high precision thermistor.

Equipped with 4 dedicated Cannon-Fenske viscometers
