High-Speed Grinding Hammer Type Cyclone Mill for Food Testing with 110mm Workroom Diameter and Motor power 750W

High-Speed Grinding Hammer Type Cyclone Mill for Food Testing with 110mm Workroom Diameter and Motor power 750W

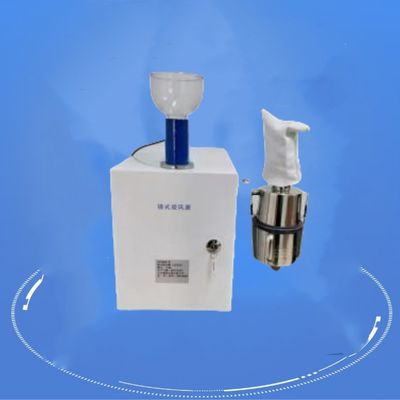

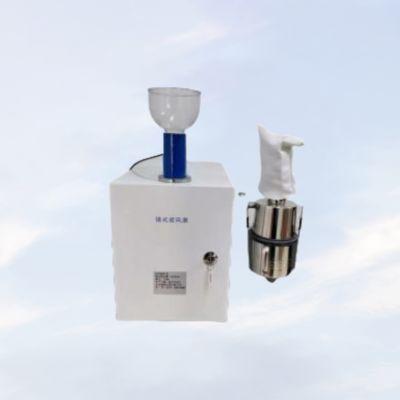

Hammer type cyclone mill is a grinding equipment with beautiful appearance, compact structure, simple operation, stable operation, and durability.
characteristics:
High speed, high efficiency, small crushing objects.
Easy to operate, Built-in protection switch, safe use.
Paste advanced wall cabinet sound insulation materials inside box, noise made less than similar products at home and abroad.
Has temperature device built in the motor, it will automatically shut down once the motor exceeds the set temperature, when temperature drops to the normal, it can restart.
Can be directly installed automatic feeder, which can effectively control the feed rate of high moisture samples and shell corn to improve the crushing effect.
Suitable for the gluten quantity and quality, grain viscosity, wheat falling number, near-infrared composition and other parameters.
parameters:
Power supply: AC220±10V 50Hz
Motor power: 750W
Workroom diameter: 110mm
Crusher hammer rotating speed: 16800r/min
Sieve plate aperture: 0.5, 0.8, 1.5mm
Shape size: 530*530*650mm
Operating weight: 51kg
Hammer type cyclone mill is a grinding equipment with beautiful appearance, compact structure, simple operation, stable operation, and durability.

The characteristics are as follows:
High speed, high efficiency, and fine particles. The sample was hammered into a fine and uniform powder by a high-speed grinding hammer, and passed through a stainless steel sieve with a high-speed airflow to enter the integrator to prepare the sample.
The interior wall of the box is pasted with domestic advanced sound absorption and insulation materials, with lower noise than similar products at home and abroad.
The motor is equipped with a built-in temperature protector. Once the motor exceeds the set temperature, it will automatically stop and restart after the temperature drops to normal.
The hammer type cyclone mill can be directly installed with an automatic feeder, which can effectively control the feeding speed of high moisture samples and shelled grain samples, and improve the crushing effect.
Crushed samples are suitable for the determination of gluten quantity, quality, grain viscosity, wheat falling value, near-infrared composition, and other indicators.
The hammer type cyclone mill is easy to operate and has a built-in protection switch for safe use.
The hammer type cyclone mill is not suitable for the determination of sample moisture.

Technical specifications

Working power supply AC220 ± 10V 50Hz
Motor power 750W
Working chamber diameter 110mm
Rotating speed of grinding hammer 16800r/min
Sieve plate aperture (mm) 0.5, 0.8, 1.5mm
Overall dimension (mm) 530 × 530 × 650mm
Operating Weight 51kg

Test items and sample size





Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, comply with national quality standards, and have the manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The warranty period for the entire equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to the user's responsibility for causing equipment malfunction, we are responsible for maintenance and reasonable charges.
----Lifetime discounted supply of components for equipment, and lifelong maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packing list
