| Brand Name: | Shengtai Instrument |
| Model Number: | SD8929B |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 100000sets/year |

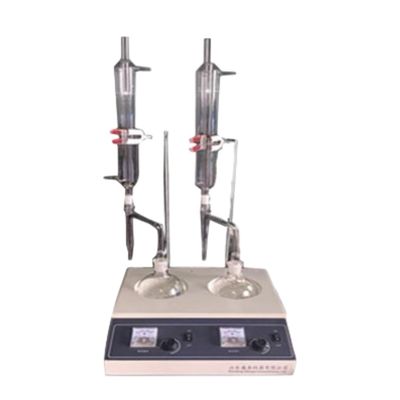

Manual distillation method using crude oil moisture analyzer SD8929B
SD8929B Crude oil moisture meter is designed and manufactured in accordance with the requirements of the People's Republic of China standard GB/T 8929-2006 "Determination of water content in crude oil". It is suitable for the determination of water content in crude oil according to the method (distillation method) specified in GB/T 8929.
ASTM D4006 Crude Oil Moisture Content Tester
Main technical features
Main technical parameters and indicators
| Input power | AC220V, 50Hz, ± 10% |
| Electric furnace heating power | 1000W |
| Flask | 500ml |
| Power consumption of the whole machine | no more than 1100W |
| Ambient temperature | ≤35℃ |
| Relative humidity | ≤85% |
| Water receiver | 5ml, the minimum scale of 0.05ml. |
| Condenser | 400mm±5mm. |
| Temperature control mode: | electronic solid state voltage regulator |
| Instrument size: 430 * 350 * 1100 (including utensils) weight:10kg | |
Packing list
| S/N | Name | Unit | Quantity | Remarks |
| 1 | Main machine of moisture meter | set | 1 | |
| 2 | Drying tube | piece | 2 | |
| 3 | Silica gel plug (3#) | piece | 2 | |
| 4 | Condenser pipe | piece | 2 | |
| 5 | Receiver | piece | 2 | |
| 6 | Round bottom flask | piece | 2 | |
| 7 | Post | pair | 2 | |
| 8 | Condensation pipe gripper | pair | 2 | |
| 9 | A little pointy tool | piece | 1 | |
| 10 | Scraper | piece | 1 | |
| 11 | Operating instruction | copy | 1 | |
| 12 | Certificate of conformity warranty card | copy | 1 |
