| Brand Name: | Shengtai Instrument |
| Model Number: | SD6536AZ |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 100000sets/year |

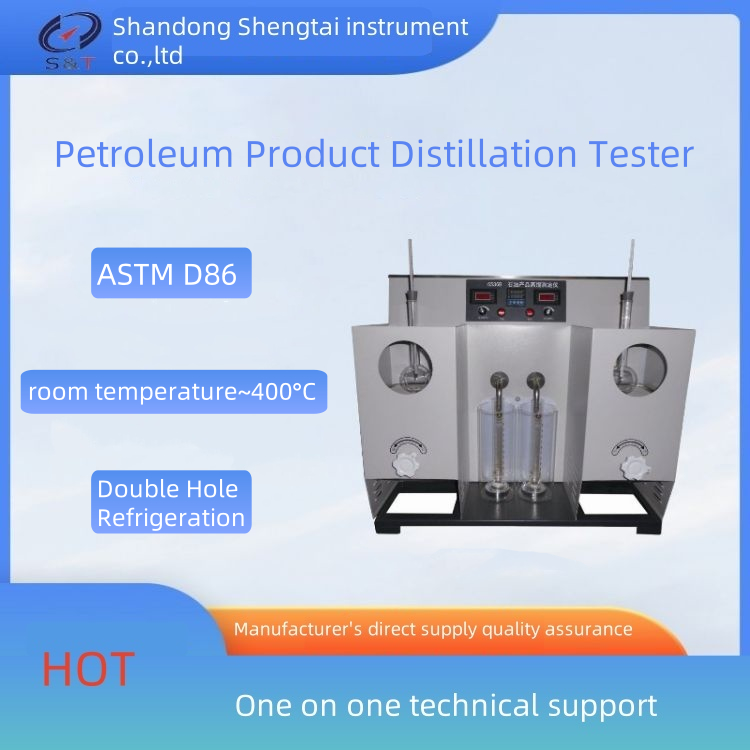

SD6536AZ Petroleum Product Distillation Tester (Double Hole Refrigeration) ASTMD86
Purpose and scope of application
SD6536AZ petroleum product distillation apparatus (double holes) is based on the standard of the People's Republic of China GB/T6536 requirements stipulated in "the distillation of petroleum products determination method of design and manufacture, suitable for according to the standard of GB/T6536 gasoline, aviation gasoline, steam jet fuel, special boiling point solvents, naphtha, diesel oil, distillate fuel oil products and similar distillation.
Petroleum Product Distillation Tester (Double Hole & Refrigeration)
ASTM D86 Petroleum Product Distillation Tester (Double Hole &Refrigeration)
ASTM D850 Distillation Tester (Double Hole &Refrigeration)
ASTMD1078 petroleum product distillation apparatus
ISO3405 Distillation Tester
ASTM D86 ASTM D850 ASTMD1078,ISO3405,ISO918,IP123,IP195
Main technical parameters and technical characteristics
(1) Main technical parameters
⑴ Power supply: AC220V±10%, 50Hz.
⑵ Heating power of electric furnace: 1000W×2.
⑶ Measuring cylinder volume: 100 mL, indexing 1 mL.
The distillation flask: 125mL, in line with the requirements of GB/T6536.
⑸ thermometer: full immersion stick, scale range (-2 ~ +300) ℃ and (-2 ~ +400) ℃, 1℃.
The electric furnace plate: silicon carbide plate manufacturing, aperture is Φ 38㎜, Φ 50㎜.
① Temperature control range: (0 ~ 80) ℃ arbitrary setting (with refrigeration).
② Temperature control accuracy: ±0.5℃.
③ Temperature display mode: LED digital display.
(8) Compressor circulation refrigeration device
| Item | Distillation Tester |
| Test standard | GB/T6536, ASTM D86 |
| Suitable for | gasoline, jet fuels, special boiling point solvent, naphtha, diesel oil, distillate and other petroleum products |
| Features | Can test two samples simultaneity |
| Heating power of electric furnace | 1000 W*2, heating power can be continuously adjusted |
| Volume of graduated flask | 100 ml with scale division of 1ml |
| Distillation flask | 125 ml |
| Thermometer | -2~300°C, and -2~400°C |
| Temperature controlling range | (0 ~ 80) ℃ arbitrary setting (with refrigeration). |
| Receiver compartment temperature | 1 ~ 60°C |
| Temperature controlling accuracy | ±0.5°C |
| Power supply | AC 220V±10%, 50 Hz |
| Ambient temperature: ≤+35°C | ≤+35°C |
| Relative humidity | ≤85% |
| Total power consumption | ≤2500 W |
| No | Name | Number | Unit | Note |
| 1 | host | 1 | 台 | |
| 2 | Distilled flask (125 ml) | 2 | 只 | |
| 3 | aquarium | 2 | 只 | |
| 4 | Silica gel plug | 4 | 个 | |
| 5 | Silicon carbide plate, aperture Φ 32㎜, Φ 38㎜, Φ 50㎜ | 2 | 块 | |
| 6 | Measuring cylinder (100ml) | 2 | 只 | |
| 7 | Test platform | 2 | 件 | |
| 8 | power cord | 1 | 条 | |
| 9 | thermometer | 2 | 支 | |
| 10 | fuse tube | 1 | 个 | 10A |
| 11 | Operating instruction | 1 | 份 | |
| 12 | packing list | 1 | 份 | |
| 13 | Certificate of approval | 1 | 份 |
