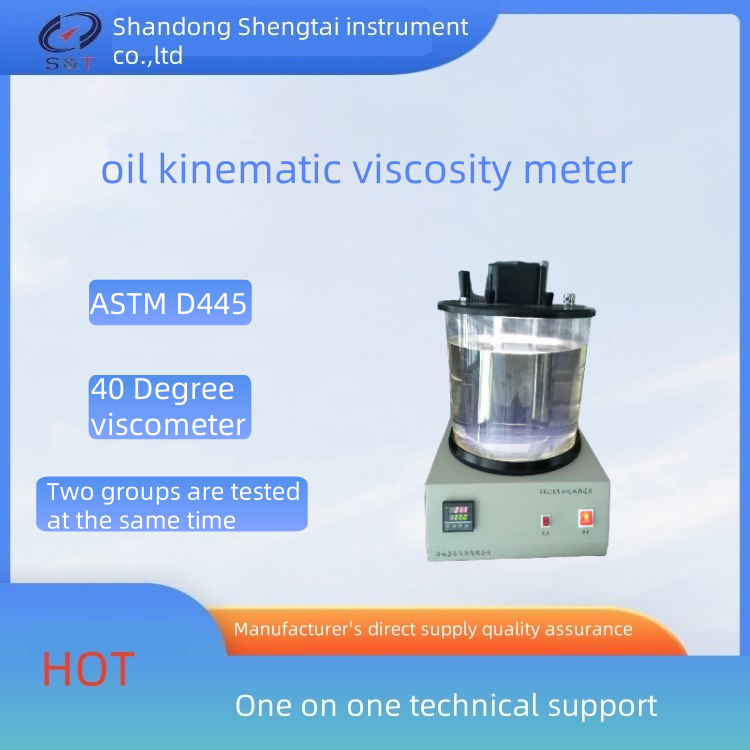

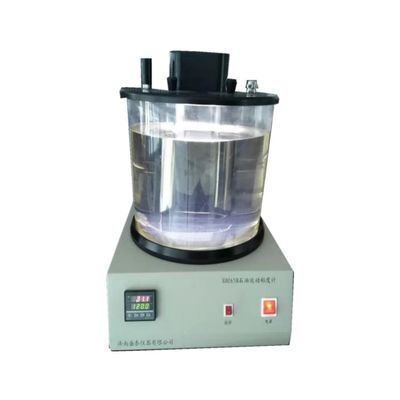

Intelligent oil kinematic viscosity meter for Precise Results in Oil Testing Equipment
SD265B oil kinematic viscosity meter manufacturing in line with the law of the People's Republic of China industry standard SY/T5651 the kinematic viscosity of petroleum products tester technical conditions of specified requirements, applicable to according to the standard of the People's Republic of China GB/T265 the kinematic viscosity of petroleum products determination method and dynamic viscosity calculation method "regulation, the determination of liquid petroleum products (Newton liquid) at a constant temperature under the condition of kinematic viscosity.
High Precision Double Layer Kinematic Viscosity Meter
ASTM D445 Asphalt Kinematic Viscosity Tester
ASTM D445 Asphalt Kinematic Viscosity Tester with High Temperature(Capillary Viscometer Method)
Oil Kinematic Viscosity Unit with Standard Capillary Viscometer
Pinkevitch Viscometer
I. Main technical features
1. The instrument adopts the form of all-in-one machine, and the control switch adopts the form of light touch key. It has the advantages of novel design, compact structure, beautiful and generous.
2, Adopt intelligent digital display temperature controller, rapid temperature control, quick response, small overshoot, temperature control accuracy up to ±0.1℃.
3, the use of hard glass tank and electric mixing device, the sample observation is clear, the temperature in the bathtub is uniform.
II. Main technical parameters and indicators
1. Power supply: AC 220 ± 10 %, 50 Hz.
2. Heating power:1000W(auxiliary heating), 600W(temperature control heating)
3. Power for stirrer: 6W, rotating speed:1200RPM
4. Temperature range: room temperature~100 ºC.
5. Temperature control accuracy: ±0.1ºC.
6. Timer: 0.0s~999.9s
7. Constant temperature bath: 20L, double shall structure.
8. Ambient temperature: -10ºC~+35ºC
9. Relative humidity: <85%.
10.Maximum power consumption: 1800W.
11.Capillary viscometer tubes(Pinkevitch viscometer): 7 pieces in total. The inner diameters for each: 0.6, 0.8,1.0, 1.2, 1.5, 2.0 and 2.5mm
12. Dimension: 530mm×400mm×670mm Net weight: about 42Kg
| Working power supply | AC 220±10%, 50Hz. |
| Heating device | electric heating, power 1800W. |
| Stirring motor | power 6W, speed 1200r/min |
| Temperature control range | room temperature ~ 100℃ range of temperature can be set. |
| Temperature control accuracy | ±0.1℃. |
| Ambient temperature |
room temperature ~ 35℃. relative humidity≤ 85%. |
| Overall dimension: 320*380*530 weight: 12kg | |
If the kinematic viscosity is measured at 100 degrees, transformer oil and stopwatch are required
Packing list:
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | set | |
| 2 | Water bath crock | 1 | piece | 1 |
| 3 | Water bath top cover assembly | 1 | piece | It has two capillaries |
| 4 | thermometer | 2 | piece | thermometer |
| 5 | power cord | 1 | piece | |
| 6 | fuse tube | 1 | piece | 10A |
| 7 | Capillary viscometer | 4 | piece | Can choose |
| 8 | Operating instruction | 1 | copy | |
| 9 | Ear suction ball | 1 | piece | |
| 10 | packing list | 1 | copy | |
| 11 | Certificate of approval | 1 | copy |
