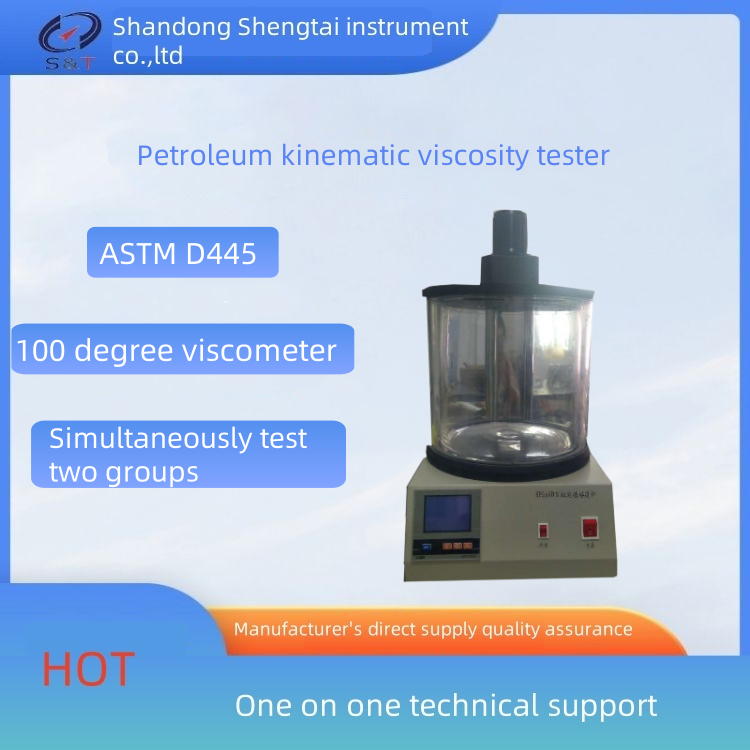

1800W Heating Power Petroleum Oil Kinematic Viscosity Tester

1800W Heating Power Petroleum Oil Kinematic Viscosity Tester

Brand Name: shengtai Instruments
Model Number: SD265D
MOQ: 1
Price: 986dollar
Payment Terms: T/T
Supply Ability: 10000 sets/year
Detail Information
Place of Origin:
China
Certification:
ASTM D445
Voltage:
AC 220V±10%,50Hz±5%
Heating Power:
1800W
Mixing Motor Power:
6W
Mixing Motor SpeedMixing Motor Speed:
1200r/min
Bath Capacity:
15L
Work Temperature:
-10℃~+35℃
Dimension:
560x530x820mm
Weight:
28Kg
Packaging Details:
wooden case
Highlight:

1800W Kinematic Viscosity Tester

,

Oil Kinematic Viscosity Tester

,

Petroleum automatic kinematic viscometer

Product Description
Temp Control Accuracy ±0.1℃ Petroleum Kinematic Viscosity Tester
1800W Heating Power Petroleum Oil Kinematic Viscosity Tester 0
The SD265D manual oil kinematic viscosity tester is designed for measuring petroleum products according to GB/T265 standard of China and ASTM D445 requirements. It determines kinematic viscosity of Newtonian liquids under constant temperature conditions.
Key Features
  • Hard glass cylinder with plexiglass insulation coat (double cylinder) for excellent insulation and clear sample observation
  • Compact desktop design with integrated structure allows two simultaneous experiments
  • Electric mixing system ensures uniform bath temperature
  • Blue LCD display provides precise temperature control (±0.1℃ accuracy)
Technical Specifications
Attribute Value
Standard GB/T265
Voltage AC 220V±10%,50Hz±5%
Heating Power 1800W
Mixing Motor Power 6W
Mixing Motor Speed 1200r/min
Bath Capacity 15L
Temperature Range Room temperature ~100℃
Temperature Accuracy ±0.1℃
Dimensions 560×530×820mm
Weight 28Kg
Packing List
S/N Name Quantity Unit Remarks
1 Host 1 Set
2 Water bath crock 1 Piece
3 Plexiglass jar 1 Piece
4 Water bath top cover assembly 1 Set Contains 2 capillary stands
5 Power cord 1 Piece
6 Thermometer 2 Piece
7 Fuse tube 1 Piece 10A
8 Capillary viscometer 4 Piece Can choose
9 Operating instruction 1 Copy
10 Wash ears ball 1 Piece
11 Packing list 1 Copy
12 Certificate of approval 1 Copy
Note: This instrument is typically used for measuring viscosity at 100℃.
