GB/T 6536 Petroleum Distillation Analyser For Gasoline And Diesel

GB/T 6536 Petroleum Distillation Analyser For Gasoline And Diesel

Brand Name: Shengtai instrument
Model Number: SD-6536C
MOQ: 1
Price: 2829dollar
Payment Terms: T/T
Supply Ability: 10000sets/year
Detail Information
Place of Origin:
China
Certification:
ASTM D86
 Power Supply:
AC(220±10%)V, 50Hz
Electric Furnace Heating Power:
1000W
 Receiving Cylinder:
100 Ml. Scale Division 1 Ml
Condensing Tube Size:
Φ Fourteen × 560 Mm
Temperature Range Of Condensing Bath:
0~400 ℃
Dimension:
520mm×440mm×550mm
 Net Weight:
25kg
Packaging Details:
wooden case
Highlight:

GB/T 6536 distillation analyser

,

Petroleum distillation analyser

,

Diesel distillation analyzer

Product Description
GB/T 6536 Petroleum Distillation Tester for Gasoline and Diesel
Petroleum Products Distillation Measuring Method
GB/T 6536 Petroleum Distillation Analyser For Gasoline And Diesel 0

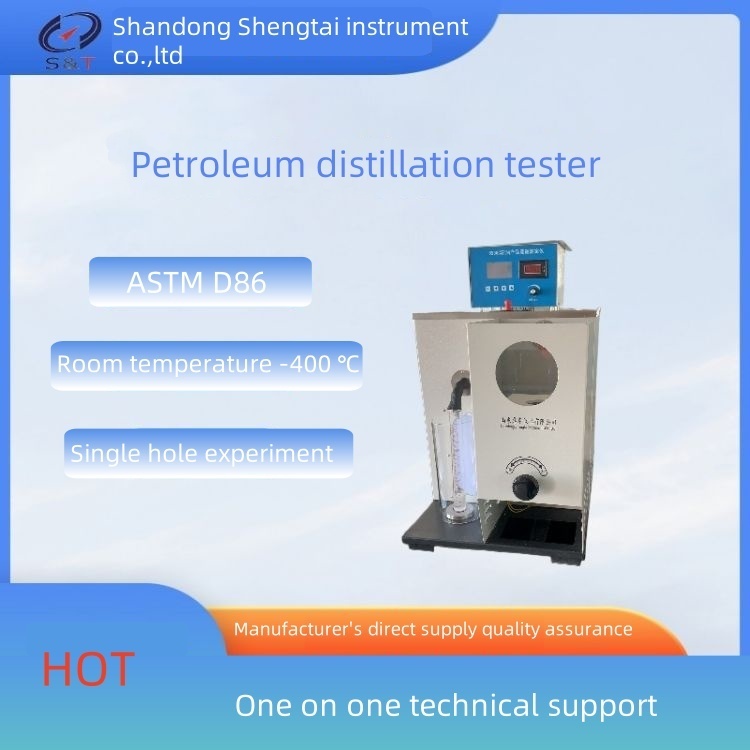

The SD 6536C Oil Distillation Tester is designed and manufactured according to the standard GB/T 6536 of the People's Republic of China for determining petroleum product distillation. It applies to gasoline, aviation gasoline, jet fuel, special boiling point solvents, naphtha, diesel oil, distillate fuel oil products, and similar distillation processes.
Compliance Standards
ASTM D86, ASTM D850, ASTMD1078, ISO3405, ISO918, IP123, IP195
Technical Features
  • Digital temperature controller with stainless steel heater, new refrigeration compressor, and electric stirrer for uniform temperature distribution
  • Special heating furnace design ensures test safety with continuously adjustable heating power
  • Complete instrument configuration for easy operation, suitable for petroleum product distillation tests under low temperature conditions
  • Stainless steel condensing water tank with heating and cooling capabilities
Technical Specifications
Power supply:
AC (220±10%)V, 50Hz
Electric furnace heating power:
1000W
Receiving cylinder:
100 ml with 1 ml scale division
Distillation flask:
125 ml, compliant with GB/T 6536 and GB/T 7534
Condensing tube size:
Φ14 × 560 mm (seamless brass pipe)
Condensate bath volume:
5.5L (actual liquid added: 4.5L)
Condensate bath temperature range:
0~400℃
Maximum power:
1.45 KW
Dimensions:
520mm × 440mm × 550mm
Net weight:
25kg
Standard Accessories
S/N Name Quantity Unit Remarks
1 Host 1 set
2 Distillation flask (125 ml) 1 piece
3 Glass tank 1 piece
4 Silicone plug 2 piece
5 Silicon carbide plate (hole diameter φ38㎜, φ50㎜) 2 piece
6 Measuring cylinder (100ml) 1 piece
7 Test platform 1 piece
8 Power cord 1 piece
9 Thermometer 2 piece
10 Fuse tube 1 piece 10A
11 Instruction manual 1 copy
12 Packing list 1 copy
13 Certificate warranty card 1 copy
