| Brand Name: | Shengtai Instrument |
| Model Number: | SH103 |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 10000sets/year |

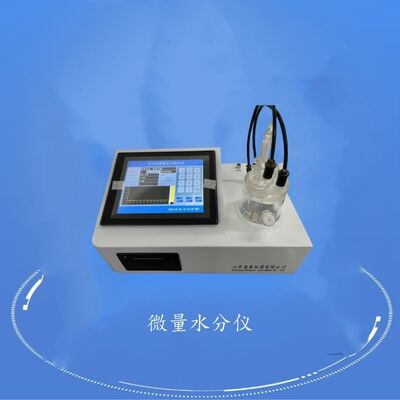

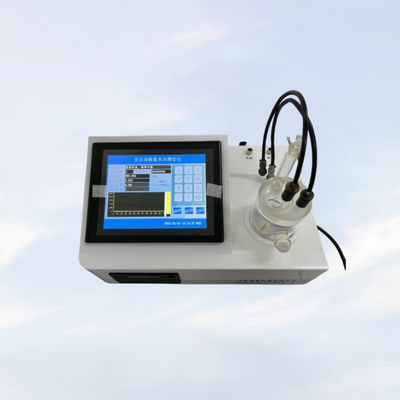

**SH103 Trace Moisture Tester**
Adopting the Karl‑Fischer coulometric titration principle, the SH103 Trace Moisture Tester is fully‑automated under microcomputer control. Compared with comparable domestic and international counterparts, it delivers outstanding performance characterized by high sensitivity, fast electrolysis, short equilibrium time, accurate blank deduction, as well as precise and reliable test results.
Applicable product aliases:
‑ Automatic Trace Moisture Tester
‑ Trace Moisture Content Meter for Petroleum Products
‑ Trace Moisture Meter (ASTM D1744)
‑ Karl‑Fischer Trace Moisture Meter for Oils
‑ Automatic Karl‑Fischer Trace Moisture Meter
‑ Karl‑Fischer Trace Moisture Meter for Multiple Oil Samples
This high‑performance analytical instrument is widely applied in petroleum, chemical, power generation, environmental protection, pharmaceutical, scientific research and other sectors.
It takes a 32‑bit embedded microprocessor as the main control core with a built‑in mini operating system.
Equipped with constant‑current detection and dual‑loop balanced titration functions.
The electrolysis cell features a waterproof and hermetically‑sealed structure.
It supports multiple calculation formulas and complies with GB/T 11133 and ASTM D0304 standards.
Technical parameters:
Carl, -- Hugh coulomb's law, to determination of trace moisture of different materials, in line with the GB/T11133, this trace moisture meter and the success of the application of this method, and used the micro computer control, its fast analysis speed, high precision, Chinese LCD color screen display, automatic printing, double CPU design, blank current deducted automatically and instrument fault self-diagnosis function, menu selection, and other functions, to achieve a better operation and use, has simple operation, automatic analysis instrument.
It is an instrument for oil moisture analysis
Display mode: color touch screen display
Titration method: microcomputer controlled electric titration
Output mode: automatic calculation, can output ug, PPM and %
Measurement range: 0.00001% to 100% as a percentage, 0.1 PPM to 1 million PPM as per PPM
Separation rate: 0.1ug
Electrolysis control: automatic electrolysis current tracking control (up to 400mA)
Titration speed: 2.5mg/min(Max)
Sensitivity: 0.1ug-- 100g not more than 2%, converted to 0.3% above 1mg (excluding injection error)
Power: 60 va
Ambient temperature: 5-40~C
Operating ambient temperature: ≤ 90%
Required consumables: special Karl Fischer reagents, the instrument itself with a set of reagents, after use can be purchased or equipped by themselves.DL/T 915-05,GB 5832-1986
Specification
| item | value |
| Warranty | 1 year |
| Type | SH103 Trace moisture meter |
| Place of Origin | China |
| Shandong | |
| Model Number | SH103 |
| Product name | Trace moisture titrator |
| Titration method | Electricity titration(Coulomb analysis) |
| Display | 5.6-inch color touch screen(LCD |
| Electrolytic current control | 0~400mA automatic control |
| Measuring range | 1ug~200mg |
| Sensitive valve | 0.1ug H2O |
| Precision | 10ug~1000ug±3ug 0.3% for 1mg above |
| Printer: | Micro thermal printer |
| Power supply | 220V±10%,50Hz |
| Power | < 40W |
| Overall dimension: 380 * 350 * 390 about 18kg | |
Meet the following standards:
1, GB/T7600 "in operation transformer oil moisture content determination method (coulomb method)"
2, GB6283 "chemical products in the determination of moisture content Karl Fischer method (general method)"
3, SH/T0246 "determination of water content in light petroleum products (electric quantity method)"
4, SH/T0255 "additives and lubricating oil containing additives moisture determination method (electric quantity method)"
5, GB/T11133 "Determination of water content in liquid petroleum products (Karl Fischer method)"
6, GB/T7380 "surfactant water content determination (Karl Fischer method)"
7, GB10670 "industrial fluoromethane in the determination of trace moisture in the Karl Fischer method"
GB/T606 General method for determination of moisture in chemical reagents Karl Fischer method
9, GB/T8350 "denatured fuel ethanol"
10, GB/T8351 "automotive ethanol gasoline"
11, GB/T3776.1 "pesticide emulsifier moisture determination method"
12, GB/T6023 Determination of trace moisture in butadiene for industrial use - Karl Fischer Coulomb method
13, GB/T3727 Industrial ethylene, propylene determination of trace water
GB/T7376 Determination of trace moisture in fluoroalkanes for industrial use
GB/T18619.1 Determination of water content in natural gas -- Karl Fischer - Coulomb method
16, GB/T512 "grease moisture determination method"
17, GB/T1600 -- Determination of pesticide moisture
18, GB/T11146 "crude oil water content determination method (Karl Fischer coulomb method)"
19, GB/T12717 "industrial acetate test method"
GB/T5074 Coking products -- Determination of moisture
1,1, 2-tetrafluoroethane (HFC-134a) for industrial use
1 PPM = 0.0001%
Packing list
| S/N | Name | Quantity | Unit | remarks |
| 1 | SH103 automatic trace moisture meter | 1 | set | |
| 2 | Electrolyte (Karl Fischer reagent) | 1 | bottle | 500ml |
| 3 | Electrolytic cell | 1 | set | |
| 4 | Electrolytic electrode | 1 | piece | On the instrument |
| 5 | Measuring electrode | 1 | piece | On the instrument |
| 6 | Grinding plug | 1 | piece | On the instrument |
| 7 | Stir the son | 1 | set | |
| 8 | silicone pad | 10 | piece | |
| 9 | Color silicone | 1 | piece | |
| 10 | Vacuum grease | 1 | piece | |
| 11 | 25ulsampler | 1 | piece | |
| 12 | 1mlsampler | 1 | piece | |
| 13 | Enclosed the needle | 1 | piece | |
| 14 | power cord | 1 | piece | |
| 15 | fuse tube | 1 | piece | |
| 16 | packing list | 1 | copy | |
| 17 | Certificate of approval | 1 | copy |
