| Brand Name: | Shengtai Instrument |
| Model Number: | SD-2801A |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 10000sets/year |

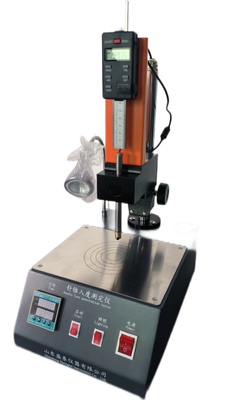

# SD2801A High‑Accuracy Lubricating Grease Cone Penetration Tester
The SD‑2801A cone penetrometer is engineered and manufactured in compliance with GB/T 269, the national standard of the People’s Republic of China titled *Test Method for Cone Penetration of Lubricating Grease*. This instrument is primarily used to measure the cone penetration of lubricating greases.
Compliant Standards: ASTM D217, ASTM D1403, ASTM D5
I. Main technical features
1, the use of digital display to display the taper value, intuitive and eye-grabbing.
2. Digital display of cone entry time control device.3, With lifting frame coarse adjustment, fine adjustment function, easy adjustment, accurate needle.
II. Main technical parameters and indicators
| measuring range | 0 ~ 700 cone degree |
| the time error | less than ±0.1 seconds; |
| coning accuracy | ±1 coning degree |
| standard | national standard GB/T269 ASTM D217 |
| Instrument size: 340*282*515 weight: 11kg | |
| Timing controller | Time can be set according to their own needs, the time error is less than ±0.1 seconds; |
| Resolution | 0.01mm |
| Working power supply | 80W |
| Standard cone | 102.5±0.05g |
| Needle holder |
It can be adjusted roughly and finely. Convenient toad just and exact to aim the sample
|
Packing list:
| S/N | Name | Unit | Quantity | Remarks |
| 1 | Instrument host | set | 1 | |
| 2 | Standard cone | piece | 1 | |
| 3 | Connecting rod | piece | 1 | |
| 4 | Standard sample box | piece | 1 | |
| 5 | Fuse 5A(∮5×20) | piece | 1 | |
| 6 | Power cord(250V 6A) | piece | 1 | |
| 7 | instructions | copy | 1 | |
| 8 | Certificate warranty card | copy | 1 |
