| Brand Name: | Shengtai Instrument |
| Model Number: | ST-63 |
| MOQ: | 1 |
| Price: | $8300 |
| Payment Terms: | T/T |
| Supply Ability: | 5 cartons per week |

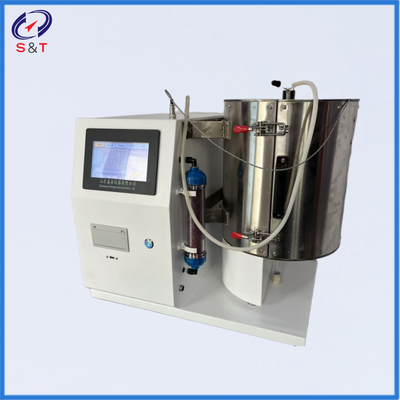

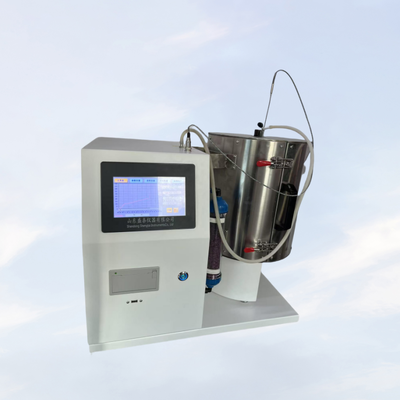

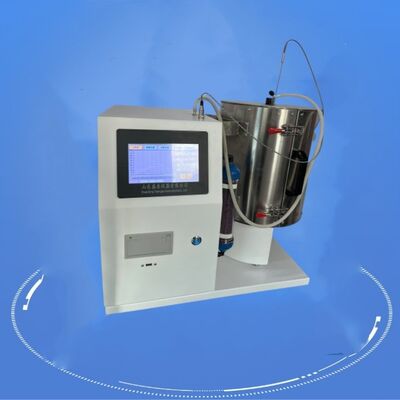

ST-63 Fully Automatic Activated Carbon Ignition Point Tester is used to determine the ignition point of activated carbon. It is developed and manufactured in compliance with GB/T 7702.9 Test Methods for Coal Granular Activated Carbon — Determination of Ignition Point and GB/T 20450-2006.
The supporting software of this instrument is equipped with a database function. It automatically records temperature data at each time node throughout the test. After testing, users can analyze the ignition performance characteristics of the tested activated carbon sample.
Working Principle
This instrument automatically controls the test for the reference ignition point of granular activated carbon under flowing air conditions. It can accurately acquire the ignition point value, visually display the time-temperature curve and heating results, and support printing of curves and test reports. All experimental data can be saved by the instrument software.
Applicable Standards: GB/T 7702.9, ASTM D3466, JIS K1474
| Attribute | Value |
|---|---|
| Control method | Digital tube control and computer operation |
| Temperature measurement range | Room temperature - 800℃ |
| Thermocouple accuracy | Furnace temperature |
| Temperature resolution | 1℃ |
| Experimental time | Automatically judges results and stops experiment |
| Heating rate | ~10℃/min before 150℃; 2-3℃/min after 150℃ |
| Carbon layer height | 25mm ± 1mm |
| Flowmeter range | 0L/min - 20L/min |
| Overall power | < 2000W |
| Voltage | AC220V 50Hz |
| Dimensions (excluding computer) | 700mm × 430mm × 580mm |
| S/N | Name | Quantity | Unit | Remarks |
|---|---|---|---|---|
| 1 | Host | 1 | set | |
| 2 | Quartz burning tube | 1 | piece | |
| 3 | Quartz particles | In host | ||
| 4 | Power cord | 1 | piece | |
| 5 | Fuse tube | 1 | piece | |
| 6 | Instructions | 1 | copy | |
| 7 | Certificate warranty card | 1 | copy |
